- compatible brand : xmx
- rechargeable : RECHARGABLE
- Type : Li-ion Batterty
- use : Camera, Karaoke Microphone, MP3 / MP4 Player, Home Appliace
- model number : 21700 6S1P
- brand name : OEM OR XMX
- place of origin : Guangdong, China
- battery type : Li-ion Batterty
- color : Silver, Blue
- nominal voltage : 21.6V
- products status : Stock
- Capacity : 4800mAh
- Place of Origin : Guangdong
- Color : Blue/SILVER
- Voltage : 22.2V
- Keyword : 3.7v Lithium Ion Battery
- Charging life cycle : 500 Cycle Times
|
NO.
|
Name名称
|
Condition条件
|
Parameter参数
|
unit
|
|
|
1
|
Norminal capacity标称容量
|
标准充放电（0.2C充放电
|
4800
|
mAh
|
|
|
Minimum capacity最小容量
|
4700
|
||||
|
2
|
Norminal voltage标称电压
|
＼
|
21.6
|
V
|
|
|
3
|
Rated Power额定功率
|
＼
|
103.68
|
Wh
|
|
|
4
|
Standard Charge（CC/CV）
标准充电方式（CC/CV） |
CC恒流
|
Standard charge
标准充电电流0.2ItA 截止电流 0.02ItA |
960
|
mA
|
|
Fast charge
快速充电电流0.5ItA 截止电流 0.02ItA |
2400
|
mA
|
|||
|
CV恒压（普压4.20V*n）
|
25.2
|
V
|
|||
|
5
|
Charge time
充电时间 |
Standard charge time
标准充电0.2ItA |
≤5.5
|
h
|
|
|
Fast charge time
快速充电0.5ItA |
≤2.5
|
h
|
|||
|
6
|
Standard discharge current标准放电电流
|
1C
|
4800
|
mA
|
|
|
7
|
Maximum discharge current
最大放电电流 |
2C
|
9600
|
mA
|
|
|
8
|
Discharge cut-off voltage
放电截止电压 |
2.7V*nn=串联数
|
15.9-16.5
|
V
|
|
|
9
|
low voltage for discharge protection
欠压过放保护电压 |
详见保护板规格书
|
2.7
|
V
|
|
|
10
|
Discharge over-current
过电流保护电流 |
＼
|
28-38
|
A
|
|
|
11
|
Lithium battery group working temperature
电池（组）工作温度 |
充电温度（环境）
|
0～45
|
℃
|
|
|
放电温度（环境）
|
-20～60
|
℃
|
|||
|
12
|
Internal resistance内阻值
|
AC 1KHz
|
≤185
|
mΩ
|
|
|
13
|
Storage temperature
贮存温度 |
1月内 Within 1 months
|
-20～45
|
℃
|
|
|
6月内 Within6 months
|
20～30
|
℃
|
|||
|
14
|
Shipment voltage出货电压
|
≥21.2
|
V
|
||
|
15
|
Weight重量
|
450±5
|
g
|
Product Description
Key Advantages:
ISO9001 Certified Factory
✅ UN38.3 / MSDS / CE / RoHS/UL/KC
✅ Fast Response & Professional Service
✅ Stable Supply and Competitive Price
✅ UN38.3 / MSDS / CE / RoHS/UL/KC
✅ Fast Response & Professional Service
✅ Stable Supply and Competitive Price
Our custom lithium ion battery packs are designed for solar energy storage, e-bikes, and industrial applications. Each pack uses
high-quality 21700 or 18650 cells with smart BMS protection.
high-quality 21700 or 18650 cells with smart BMS protection.
Detailed Images
Product detail drawing
产品细节图 +产品细节介绍

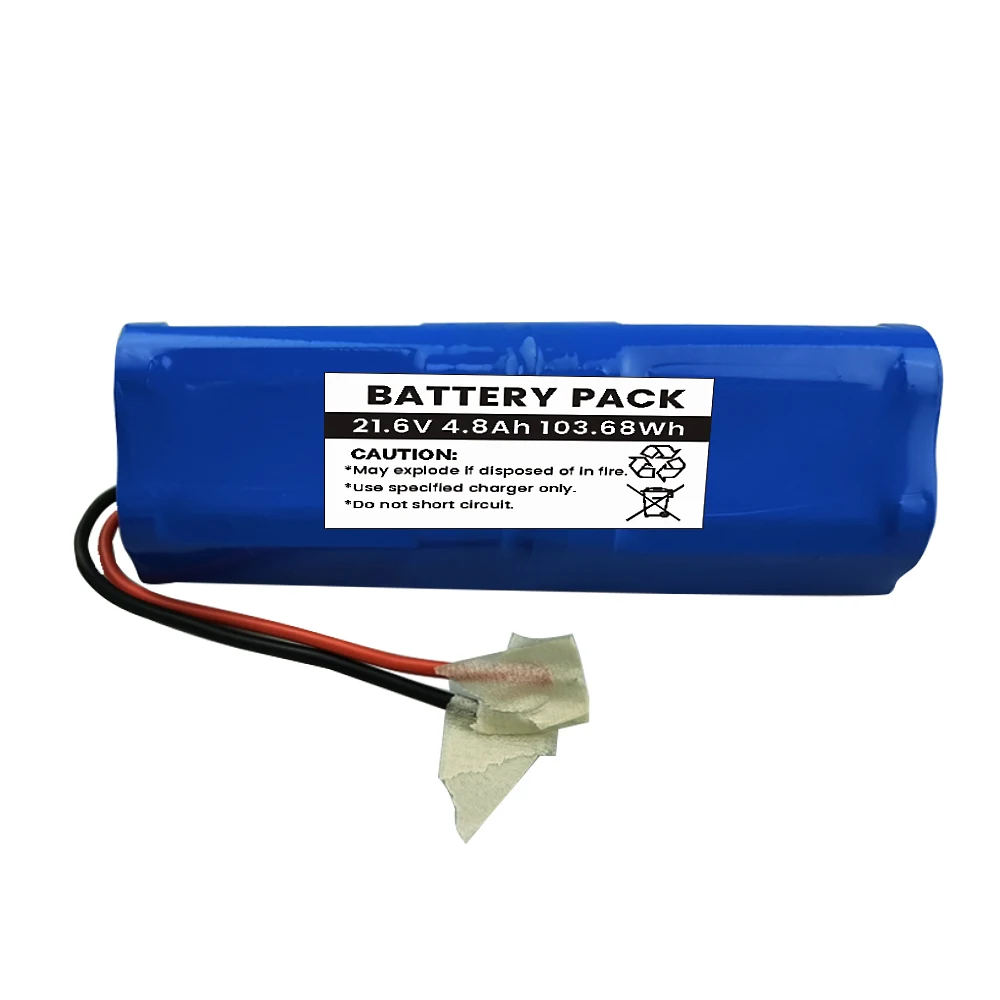

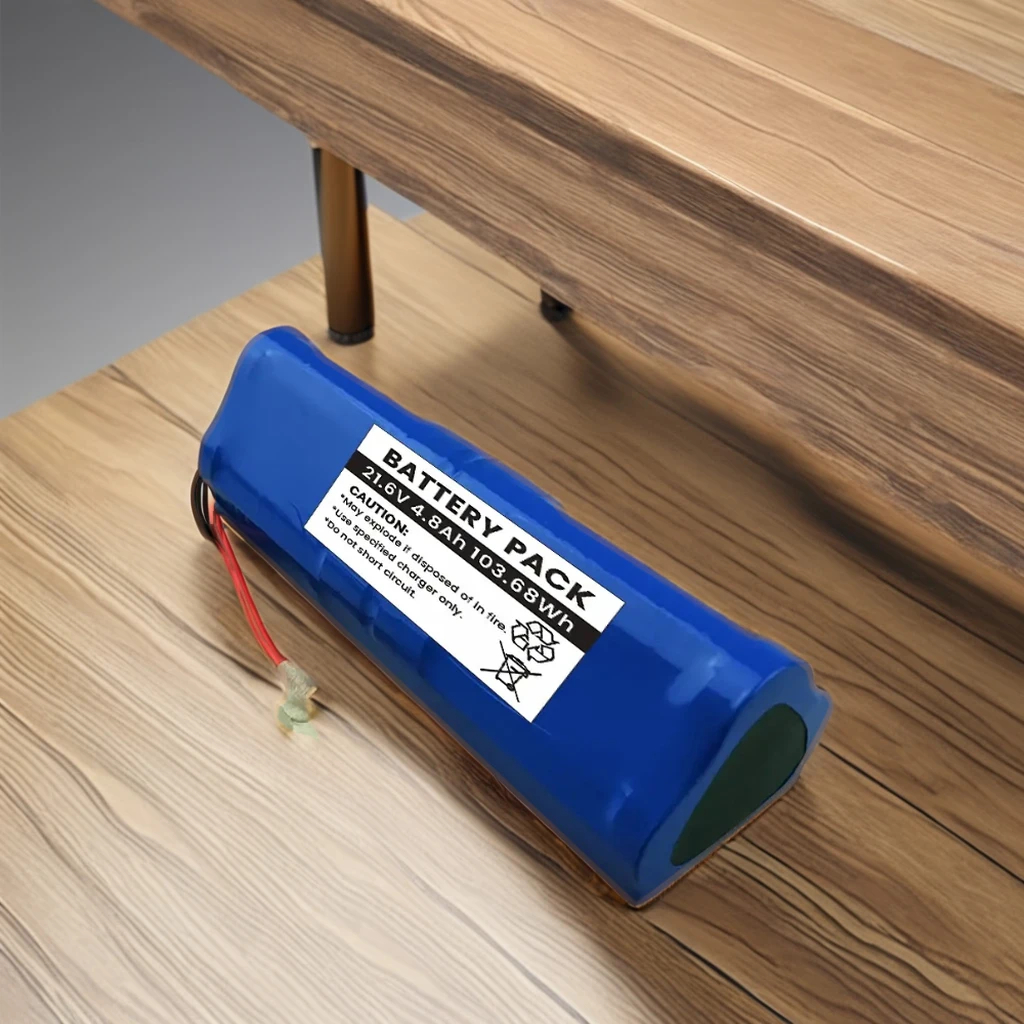

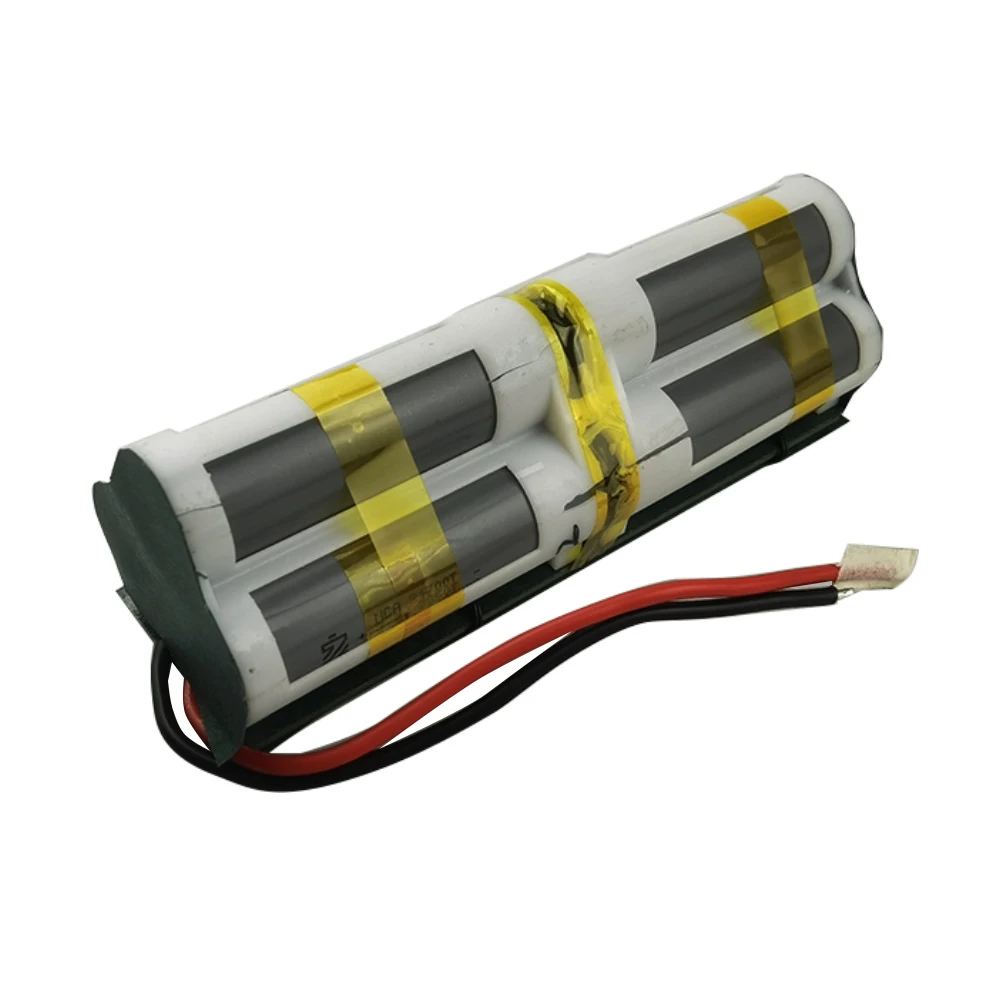

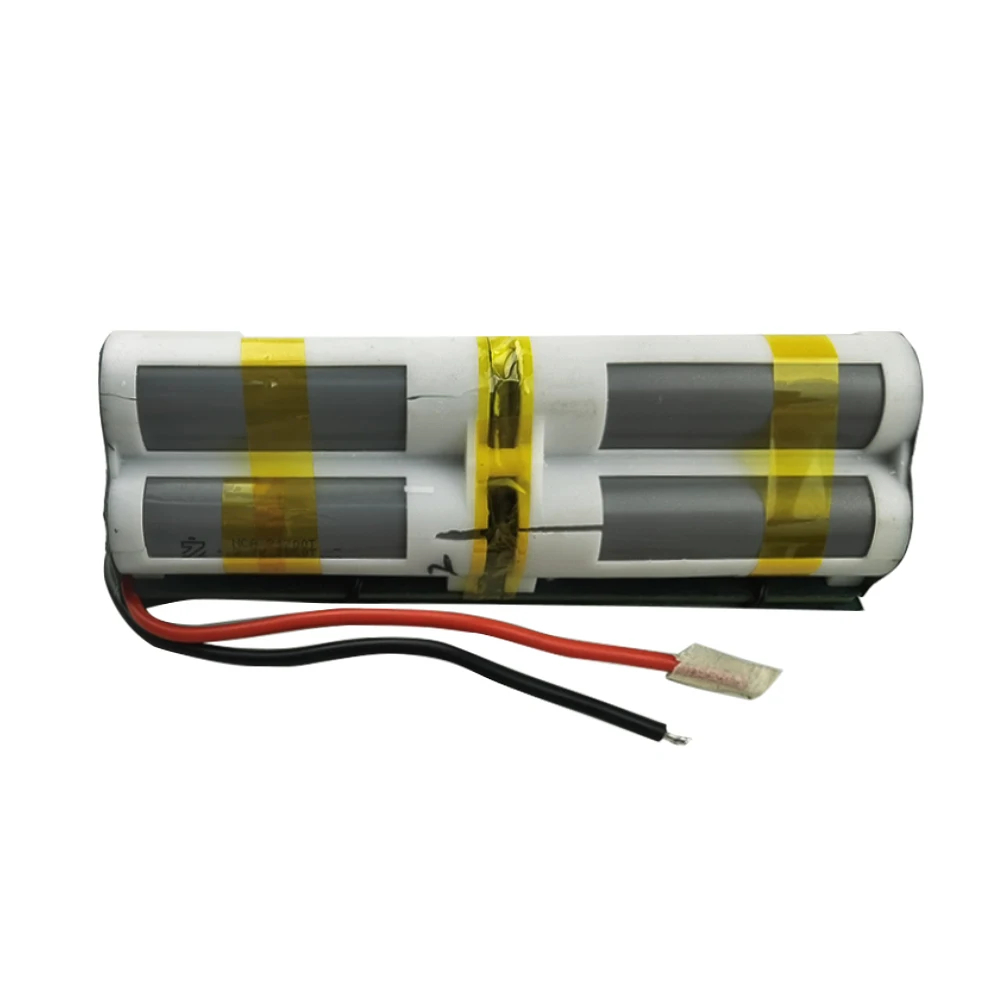

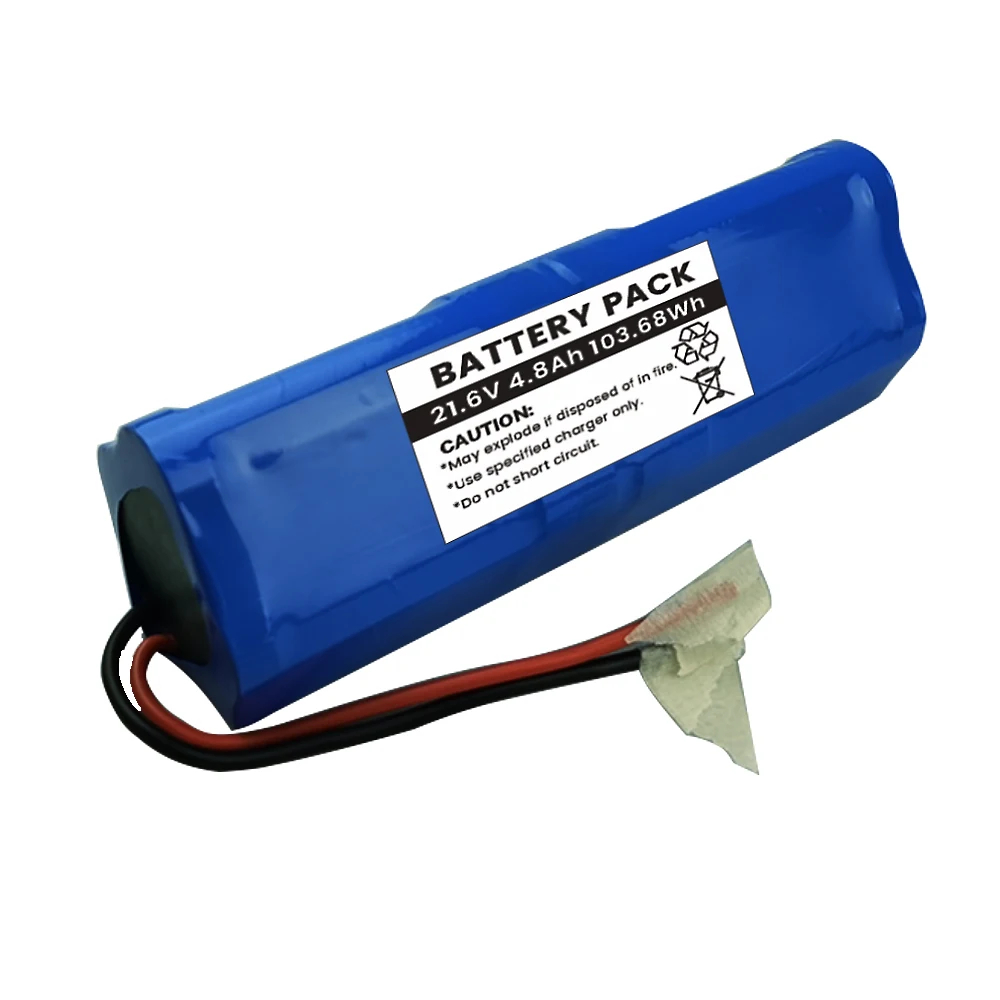

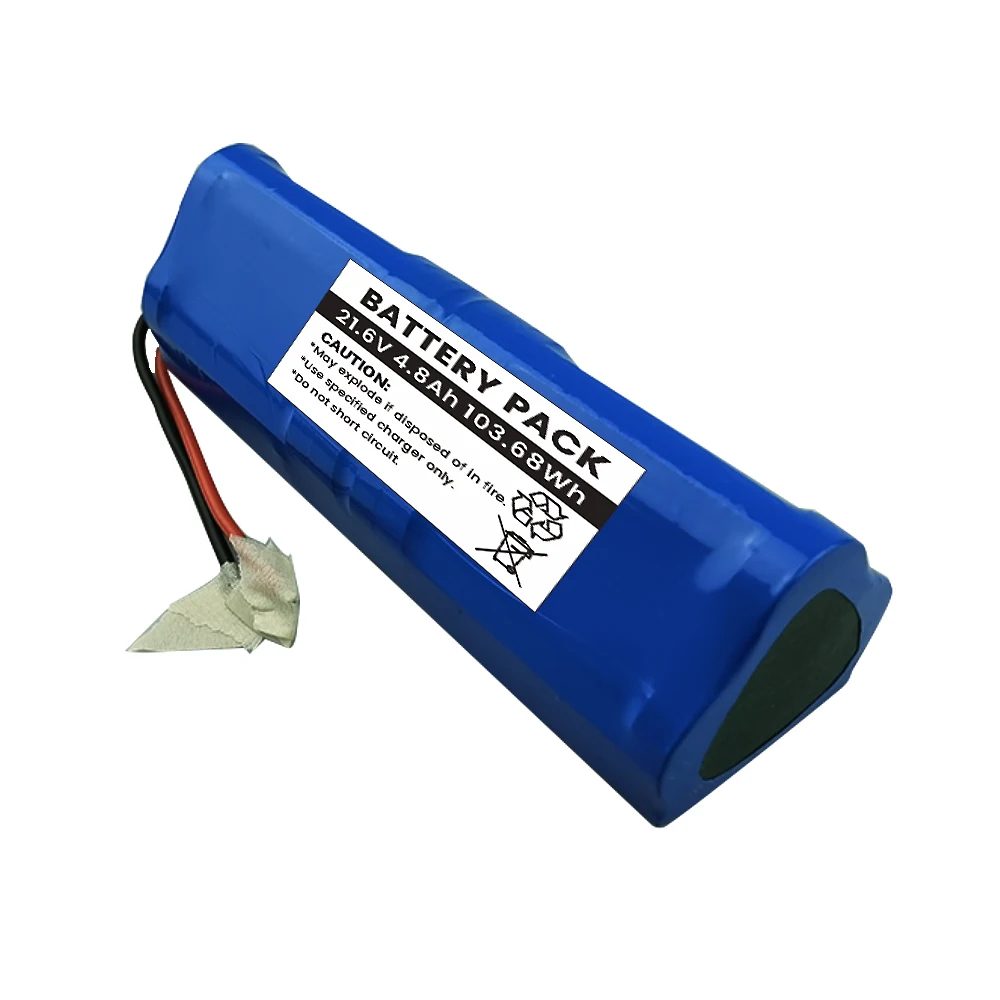

This 21700 6S1P 22.2V 4800mAh Li-ion battery pack is built with high-performance 21700 cells, providing superior energy density
and long cycle life. Designed for FPV drones, RC models, robots, and other high-drain devices, it offers stable output and
excellent reliability.
and long cycle life. Designed for FPV drones, RC models, robots, and other high-drain devices, it offers stable output and
excellent reliability.
High power and energy density with 21700 Li-ion cells
Lightweight and compact size for portable applications
Stable discharge performance and long cycle life
Built-in protection circuit optional BMS
Support for custom voltage, capacity, and connectors
Environmentally friendly and RoHS compliant
Lightweight and compact size for portable applications
Stable discharge performance and long cycle life
Built-in protection circuit optional BMS
Support for custom voltage, capacity, and connectors
Environmentally friendly and RoHS compliant
Applications:
FPV Racing Drone
RC Car / RC Boat / RC Aircraft
Smart Robot / AGV Robot
Electric Tools / Portable Devices
DIY Power Systems / Backup Power
Introduction of product advantages or application effect or application mode
产品优点or使用效果or使用方式的介绍说明
Application :
This 21700 6S1P 22.2 V 4000 mAh lithium-ion battery pack is made from high-quality 21700 cells. It delivers high discharge power,
stable voltage, and long cycle life — ideal for FPV drones, RC cars, robots, and various industrial or portable power systems. OEM
and ODM customization are fully supported
stable voltage, and long cycle life — ideal for FPV drones, RC cars, robots, and various industrial or portable power systems. OEM
and ODM customization are fully supported
* FPV Racing Drone
* RC Car / RC Boat / RC Aircraft
* Service Robot / AGV / AMR
* Electric Tools / Portable Devices
* DIY Battery Pack Projects
battery solution for your selection
* 3S1P 11.1V 2200mAh for Power Tools
* 4S2P 14.8V 5200mAh for E-bike
* 7S3P 25.9V 7800mAh for Robots
* 4S2P 14.8V 5200mAh for E-bike
* 7S3P 25.9V 7800mAh for Robots
* 12V / 24V / 48V LiFePO4 Battery Modules for Home Solar Systems
Key features
* Built with high-density 21700 cells for extended runtime
* High power output, stable voltage performance
* Compact and lightweight design
* Optional BMS for enhanced safety
* Customizable voltage, capacity, and connectors
* Environment-friendly and RoHS compliant
Product Presentation
-
shipment package
Company Introduction
With over 10 years of experience in the lithium battery industry, we specialize in 18650 and 21700 cells and a wide range of customized battery packs.
Our products are widely used in E-bikes, Power Tools, Solar Energy Storage, Medical Devices, and Smart Equipment.
We own advanced production lines, strict quality control systems, and a professional R&D team to support OEM/ODM projects.
Our products are widely used in E-bikes, Power Tools, Solar Energy Storage, Medical Devices, and Smart Equipment.
We own advanced production lines, strict quality control systems, and a professional R&D team to support OEM/ODM projects.
Packing&Shipping
FAQ
Why Choose Us ?we give you qo reasons
1.10+ Years Battery Industry Experience
2.Direct Factory with Stable Quality & Supply
3.Strong R&D and Customization Capability
4.Wide Range: 18650 / 21700 / LiFePO4 / Polymer pack
5.Export Experience to 30+ Countries
3.Strong R&D and Customization Capability
4.Wide Range: 18650 / 21700 / LiFePO4 / Polymer pack
5.Export Experience to 30+ Countries
6.Professional battery manufacturer in Dongguan, China
7. OEM / ODM service, flexible design
8.Strict quality control and testing before shipment
9.Fast delivery and stable supply
10.Quick response — within 12 hours
7. OEM / ODM service, flexible design
8.Strict quality control and testing before shipment
9.Fast delivery and stable supply
10.Quick response — within 12 hours
Company introduction
Xinmengxing Technology is a high-tech enterprise. This is our third five-year period. We are constantly pursuing technological innovation, thinking innovation and quality innovation。we adheres to technological innovation, management innovation and R&D innovation as its foundation, constantly enhancing the competitiveness of its products
