18650 6S2P Battery Pack 22.2V 5200mAh Rechargeable Li-ion for Power Tool Lawn Mower E-scooter Robot AGV Portable Power Station | CE UN38.3 | OEM Factory Direct

🔋 18650 6S2P Battery Pack — 22.2V 5200mAh Rechargeable Li-ion Industrial Battery

Overview

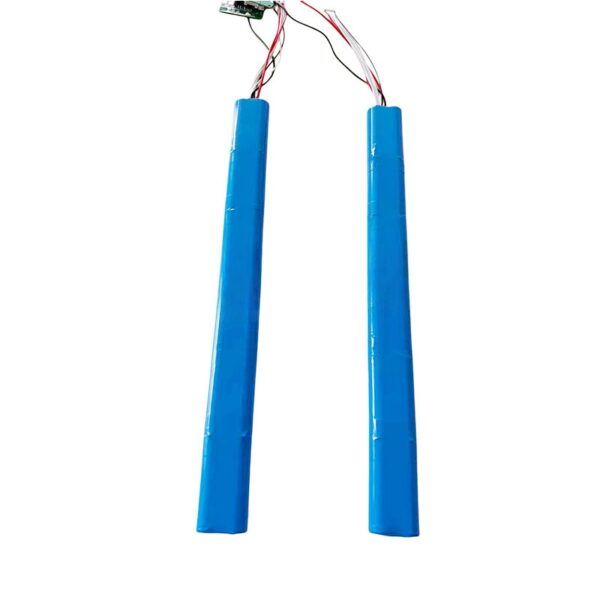

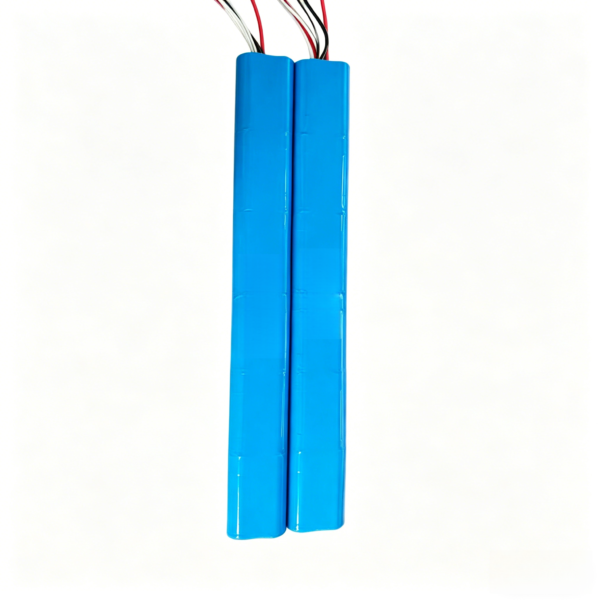

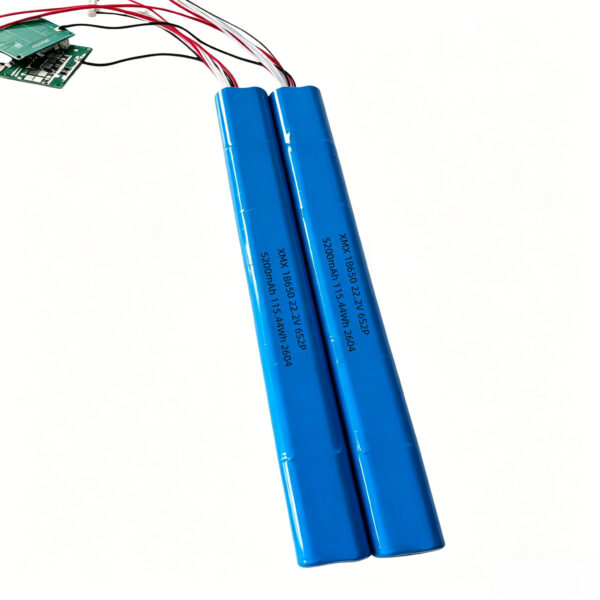

This 18650 6S2P lithium-ion battery pack connects twelve Grade A 18650 cells — six in series, two in parallel — delivering 22.2V / 5200mAh (115.44Wh). As the double-capacity upgrade from the 6S1P configuration, it maintains the same proven 22.2V output while doubling runtime — making it the preferred choice for professional cordless power tools, electric lawn mowers, high-power e-scooters, industrial AGV systems, and light robotic platforms requiring extended operation per charge. CE and UN38.3 certified, full OEM customization available.

6S2P Architecture

┌──────────────────────────────────────────────────────┐
│ String 1: [C1]─[C2]─[C3]─[C4]─[C5]─[C6]  = 22.2V  │
│                        ║                             │
│ String 2: [C1]─[C2]─[C3]─[C4]─[C5]─[C6]  = 22.2V  │
│                   ↓ Parallel ↓                       │
│         Total: 22.2V / 5200mAh = 115.44Wh           │
│                12 cells total                        │
└──────────────────────────────────────────────────────┘

6S = 3.7V × 6   = 22.2V
2P = 2600mAh × 2 = 5200mAh

Key Specifications

Full Voltage Reference

6S2P Multi-Capacity SKU Options

⭐ Default: 5200mAh Grade A 2600mAh/cell — industry’s most mature 18650 cell, best cycle life per dollar.

6S1P vs 6S2P — Upgrade Value

📌 6S2P = Double the runtime of 6S1P at the same voltage — ideal when same device needs 2× longer operation per charge.

6S Full Series — Parallel Capacity Ladder

Runtime Estimation

📌 Based on 115.44Wh at 85% efficiency.

BMS Protection — 12-Cell System

Applications

✈️ IATA Air Freight Status

✈️ All 6 SKUs qualify for air freight under Section IB — all below the 160Wh IATA threshold. 6S2P-5200 at 115.4Wh is the optimal balance of capacity and logistics cost.

Charging Guide

⚠️ Must use 25.2V / 6S balance charger with JST-XH 7Pin balance connector.

Connector Reference

Default Package Configuration

OEM / Custom Options

Certification & Compliance

Why Choose Us?

• 🏭 Factory Direct — own 18650 pack assembly, zero intermediaries
• 🔋 2× runtime vs 6S1P — same voltage, double capacity, same connector
• ✈️ All SKUs air-freight eligible — max 155.4Wh, all below IATA 160Wh
• ⚖️ 12-cell BMS balancing — every pack cell-balanced to <5mV delta
• 📋 CE + UN38.3 standard — full DG documentation included
• 🔬 7-day OEM sample — any capacity, connector, housing
• 🛠️ Full OEM service — spec to certified mass production

📩 Need 22.2V extended runtime? Share your tool’s current draw and runtime target — we’ll recommend 6S2P vs 6S3P optimal configuration within 24 hours.
