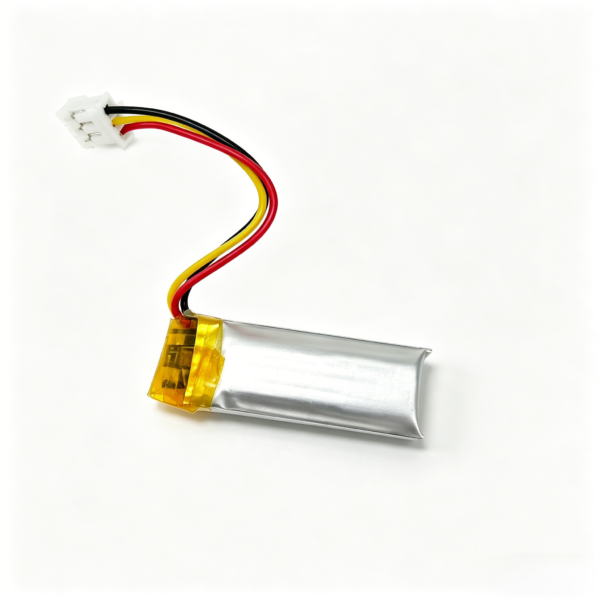

601230 3.7V 200mAh LiPo Battery
$1.20
Model 601230 3.7V 200mAhlithium polymer battery. High energy density with built-in BMS protection. Ideal for portable electronics, wearables and IoT devices. Custom sizes available. HNF Battery manufacturer.
Overview
The 601230 3.7V 200mAh Lithium Polymer Pouch Battery is a compact, ultra-slim rechargeable cell purpose-built for miniaturized wireless and portable electronics. With its flat soft-pack structure and multi-model compatibility (drop-in replacement for 402030 / 502025 / 702020), it gives OEM and aftermarket buyers maximum design flexibility without retooling or redesign.
⚡ Key Specifications
| Parameter | Value |
|---|---|
| Model | 601230 |
| Dimensions | 6.0 × 12 × 30 mm |
| Nominal Voltage | 3.7V |
| Capacity | 200mAh |
| Watt-Hour Rating | 0.74Wh |
| Full Charge Voltage | 4.2V |
| Cut-off Voltage | 3.0V |
| Cell Type | Lithium Polymer (LiPo) Pouch |
| Configuration | 1S1P |
| Weight | Approx. 4.0g |
| Cycle Life | ≥500 cycles (≥80% capacity retention) |
| Charge Temperature | 0°C ~ 45°C |
| Discharge Temperature | -20°C ~ 60°C |
| Storage Temperature | -20°C ~ 25°C (long term) |
| Connector | Customizable (JST PH2.0 / Molex / bare wire) |
| Protection | PCM: over-charge / over-discharge / over-current / short-circuit |
| Certifications | UN38.3 / CE / RoHS / MSDS |
✅ Product Highlights
1. Ultra-Slim Flat Form Factor At just 6mm thick and 12mm wide, this cell slips into the tightest enclosures — smartwatch bands, earphone charging cases, slim RC controllers, and miniature IoT nodes — without adding bulk or weight.
2. Multi-Model Compatibility Serves as a direct replacement for 402030, 502025, and 702020 batteries. Buyers sourcing for multiple SKUs can consolidate to a single supplier, reducing procurement complexity and lead times.
3. Full Protection Circuit (PCM Built-In) Integrated PCM guards against:
- ✅ Over-charge (cuts off at 4.2V)
- ✅ Over-discharge (shuts off at 3.0V)
- ✅ Over-current & short-circuit
- ✅ Over-temperature protection
4. Long Cycle Life & Low Self-Discharge Rated for 500+ charge cycles at 80% capacity retention. Polymer gel electrolyte delivers a significantly lower monthly self-discharge rate than conventional Li-ion cylindrical cells — ideal for devices with intermittent use patterns.
5. Lightweight & High Energy Density At ~4g, it provides 0.74Wh in a package smaller than a stick of gum, making it one of the most energy-dense options in the sub-250mAh category.
6. OEM / ODM Ready Custom dimensions, connector types, wire gauge/length, PCM rating, and branding labels all available. Sampling in 3–12 business days.
🎯 Application Scenarios
- 🎧 Bluetooth Earbuds & Headsets — perfect size for charging cases and in-ear modules
- ⌚ Smartwatches & Fitness Bands — slim profile fits narrow wearable housings
- 🖱️ Wireless Mice & Remote Controllers — reliable low-drain power delivery
- 🚁 RC Toys & Mini Drones — lightweight cell for small-scale RC models
- 📡 IoT Sensors & Beacons — long standby life for low-power wireless nodes
- 💊 Portable Medical Monitors — stable voltage output for precision devices
- 🔦 LED Gadgets & Mini Speakers — compact fit for consumer electronics
🔄 Compatible Model Cross-Reference
| Model | Dimensions | Capacity | Notes |
|---|---|---|---|
| 601230 | 6.0 × 12 × 30 mm | 200mAh | This product |
| 402030 | 4.0 × 20 × 30 mm | ~150–200mAh | Thinner, wider |
| 502025 | 5.0 × 20 × 25 mm | ~180–200mAh | Slightly shorter |
| 702020 | 7.0 × 20 × 20 mm | ~180–200mAh | Thicker, square |
⚠️ Always verify physical dimensions with your device cavity before ordering. Capacity may vary ±5% by batch.
🔧 Customization Options
| Item | Options |
|---|---|
| Capacity | 50mAh – 5,000mAh |
| Voltage | 3.7V (1S) / 7.4V (2S) / 11.1V (3S) |
| Shape | Rectangular, L-shape, curved, ultra-thin |
| Connector | JST PH2.0 / Molex 51021 / bare leads / custom |
| Protection | Standard PCM or BMS with NTC thermistor |
| Certifications | UN38.3, IEC62133, CE, UL, KC upon request |
| Label / Packaging | Custom printing & retail packaging available |
📦 MOQ & Lead Time
| Type | Details |
|---|---|
| Sample MOQ | 10–100 pcs |
| Bulk MOQ | 500 pcs (negotiable for large orders) |
| Sample Lead Time | 3–12 business days |
| Mass Production | 15–30 business days |
| Shipping | DHL / FedEx / UPS / Sea freight available |
⚠️ Safety & Storage Guidelines
- Store at 40%–60% charge for long-term storage; recharge every 3 months
- Keep in a cool, dry place away from direct sunlight and heat sources
- Use only a compatible Li-Po charger — do not use a Li-ion or NiMH charger
- Do not puncture, bend, crush, or expose to temperatures above 60°C
- Compliant with UN38.3 for international air and sea transport
📩 Request a datasheet, sample, or bulk quote today. One-year limited warranty. OEM/ODM orders welcome. Fast global shipping.
