22.2V 6S1P 18650 Li-ion Battery Pack: The Versatile 6-Cell Power Solution for Robots, Medical & Industrial Equipment

Among the most widely deployed lithium-ion configurations in portable electronics and industrial equipment is the 22.2V 6S1P pack — six 18650 lithium-ion cells in series. This voltage sits at the sweet spot between 14.8V (4S) and 25.2V (7S): high enough to power demanding motors and electronics, compact enough for hand-held and mobile applications, and standardized enough to have a mature ecosystem of chargers, BMS modules, and compatible devices.

This guide walks through the technical fundamentals of the 22.2V 6S configuration, the real-world applications it serves, how to specify one for your project, and what to look for in a quality 6S pack.

The 22.2V 6S Configuration Explained

The “6S” designation means six cells in series (S), with no parallel strings (1P). Each 18650 lithium-ion cell has a nominal voltage of 3.7V, so six cells in series gives a nominal pack voltage of 22.2V (6 × 3.7V = 22.2V).

Key voltage milestones for a 6S Li-ion pack:

• Fully charged: 25.2V (4.2V per cell × 6)
• Nominal (50% SOC): 22.2V (3.7V per cell × 6)
• Discharge cutoff: 16.5V (2.75V per cell × 6)

The 22.2V nominal voltage is close enough to a 24V system that it interfaces cleanly with most DC motors, motor controllers, and DC-DC converters rated for 24V input. This makes it a natural upgrade path from aging 24V lead-acid batteries — lighter, smaller, and with significantly better cycle life.

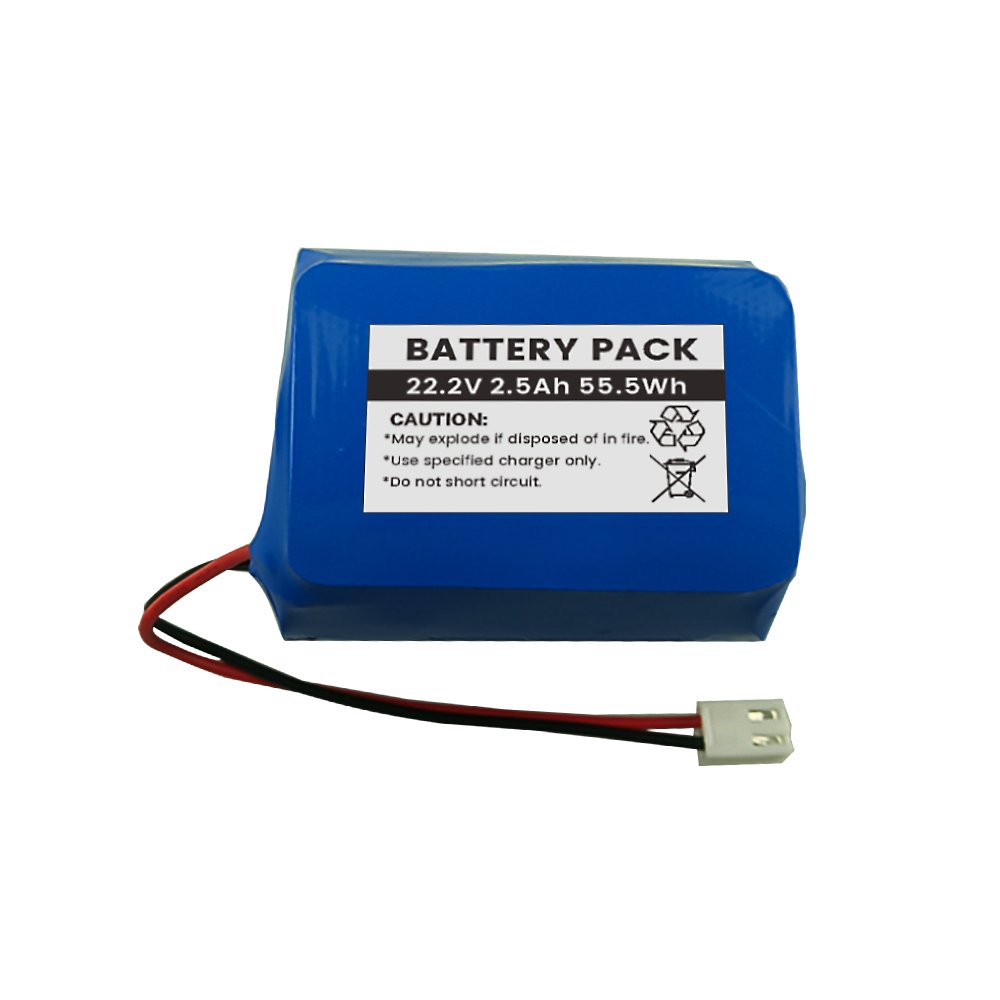

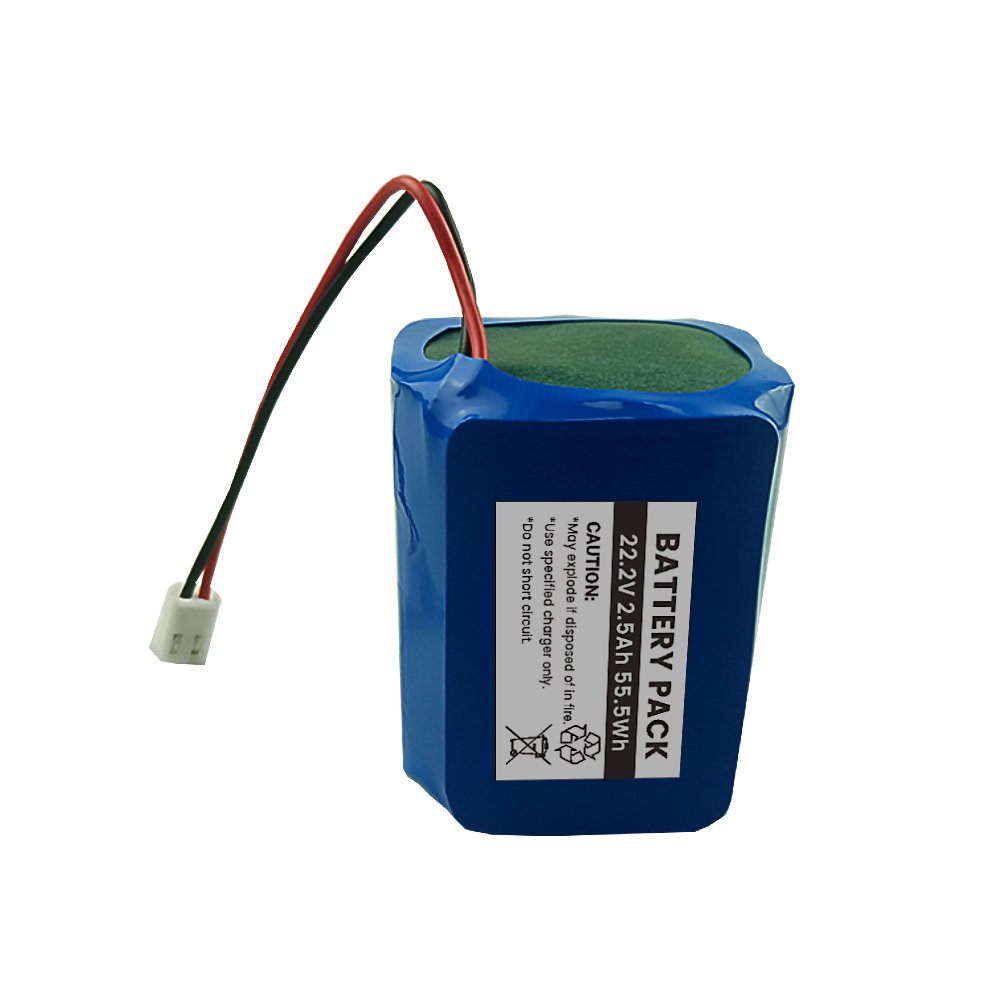

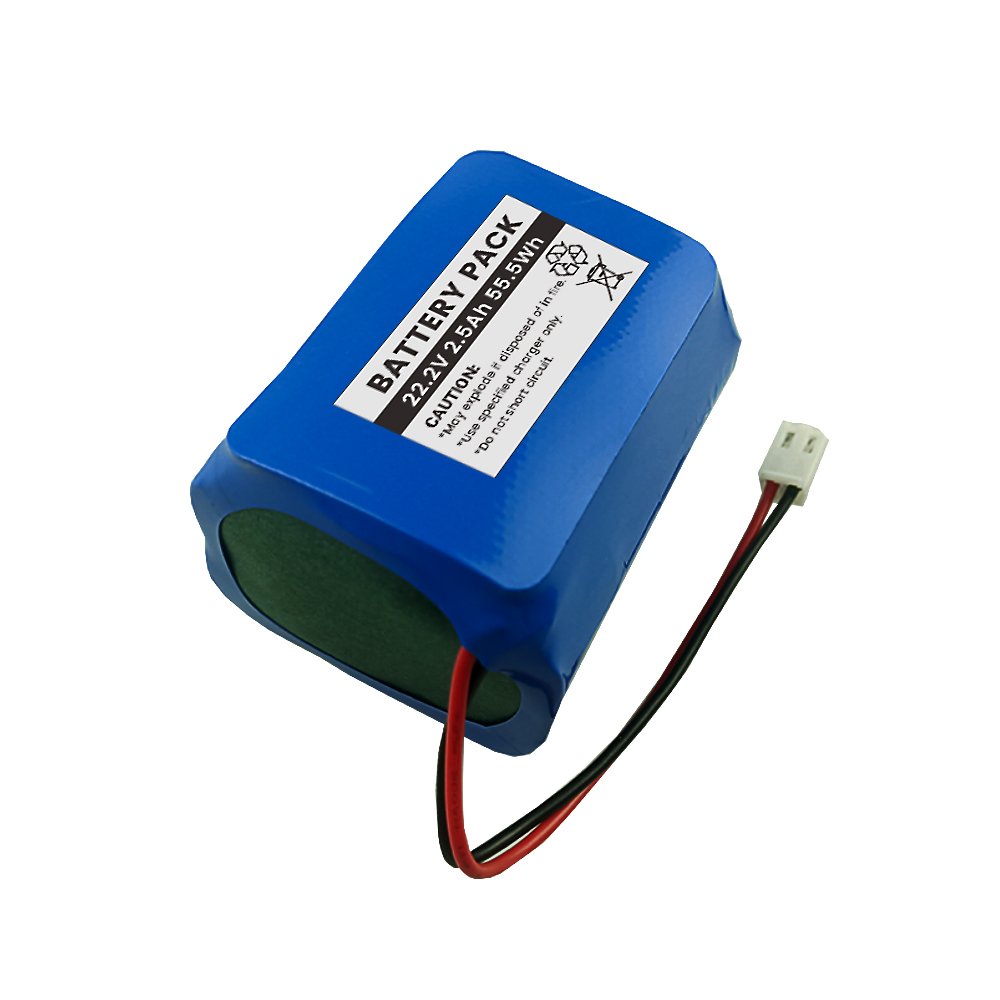

HNF Battery 22.2V 2500mAh 18650 Pack: Specifications

The HNF Battery 22.2V 6S1P pack delivers 2,500mAh nominal capacity and 55.5Wh of stored energy in a compact form factor built for demanding applications. Here are the key specifications:

• Nominal voltage: 22.2V (6S1P configuration)
• Nominal capacity: 2,500mAh
• Rated energy: 55.5Wh
• Cell type: Ternary Li-ion (NMC), 18650 form factor
• Max continuous discharge: 5,000mA (2C)
• Max charge current: 2,500mA (1C)
• Standard charge time: ≤ 8 hours

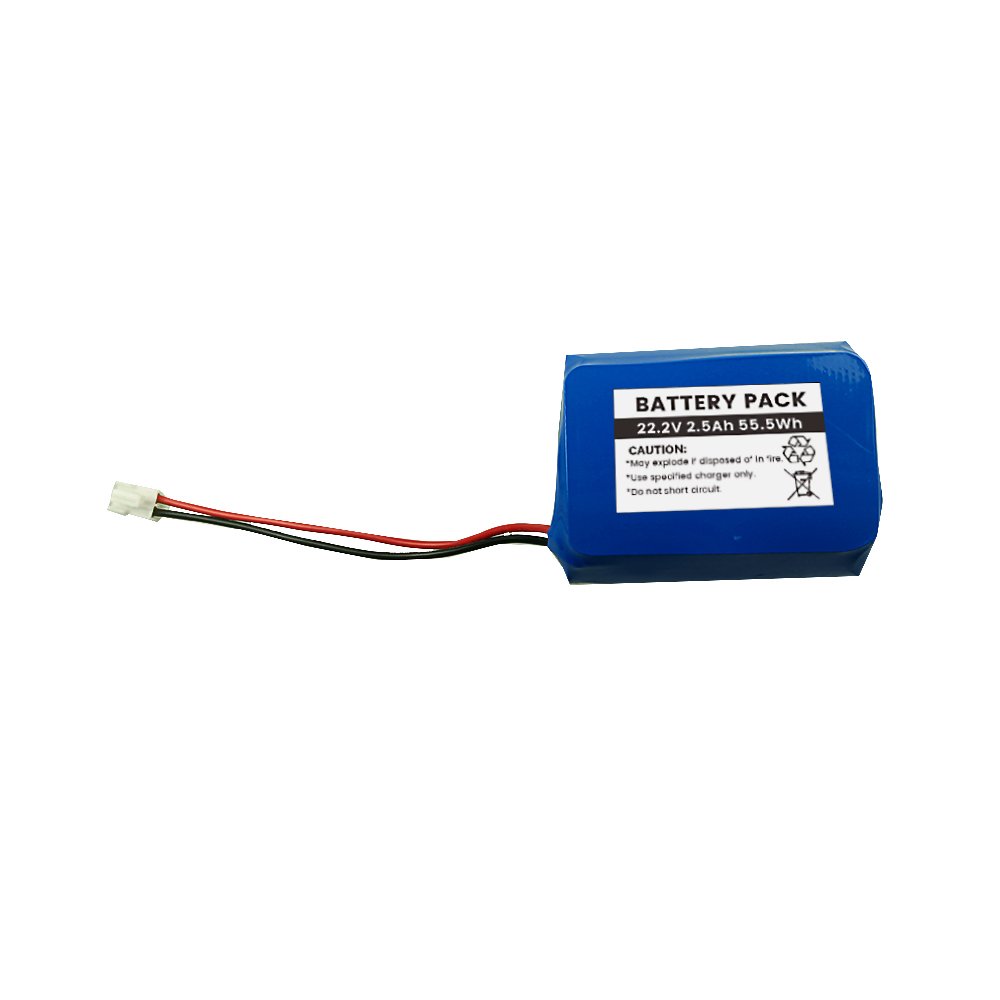

• Weight: Compact PVC heat-shrink housing

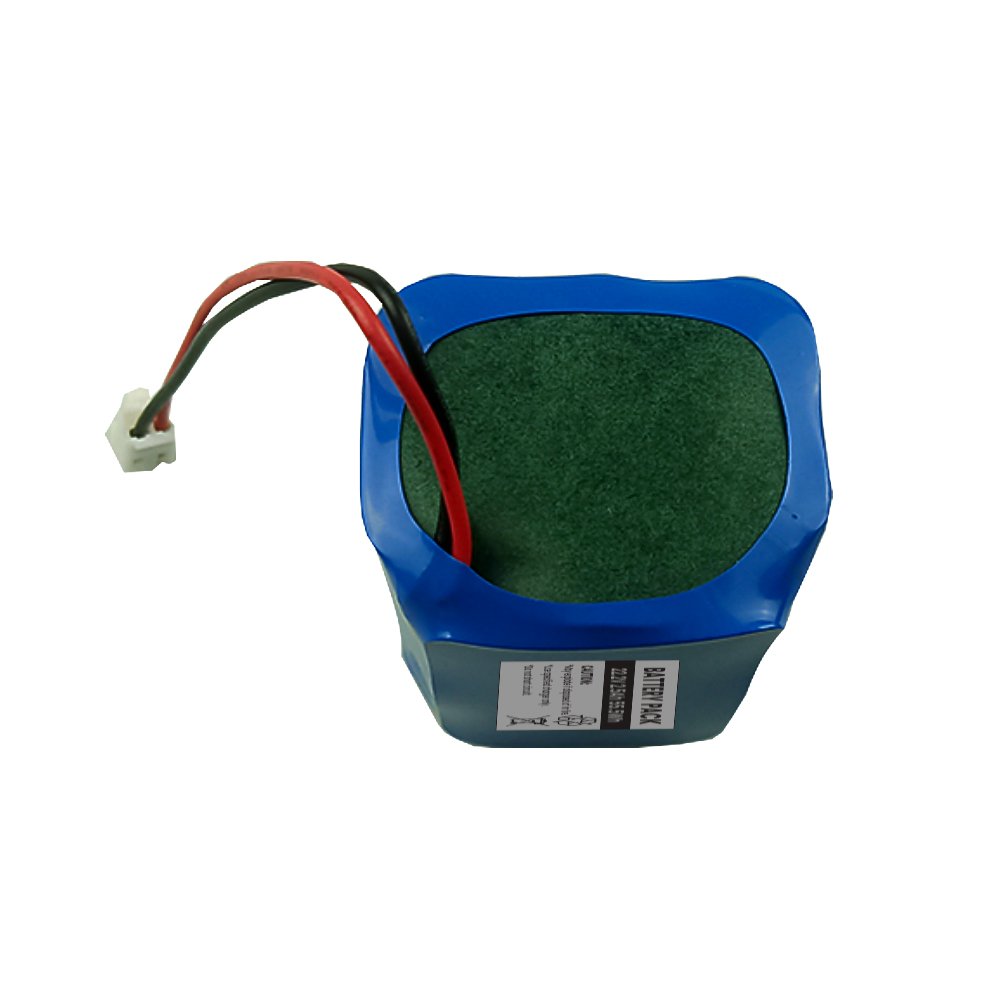

• Output connector: 2-pin JST/XH style connector (red positive, black negative)
• Certifications: UN38.3, CE, RoHS

The 2C continuous discharge rating (5,000mA) is suitable for motor-driven devices that require sustained power delivery — not peak power for starting motors, but consistent throughput for tools and robots running continuous duty cycles.

BMS Protection: What’s Inside a Quality 6S Pack

A 6S lithium-ion pack requires active management to operate safely. The integrated battery management system (BMS) in a quality pack performs several critical functions:

• Over-charge protection: Shuts down charging if any cell exceeds 4.25V, preventing thermal runaway during charging.
• Over-discharge protection: Disconnects the load when pack voltage drops below 16.5V (2.75V per cell), preventing deep discharge damage.
• Over-current protection: Limits discharge current to protect cells and connected equipment during motor startup or short circuits.
• Short-circuit protection: Instant disconnection in the event of a wiring fault.
• Cell balancing: Passive balancing keeps all six cells at equal charge levels, maximizing pack longevity.
• Temperature monitoring: Charging halts below 0°C and above 45°C to prevent damage or safety risks.

Application Scenarios: Where 22.2V 6S Packs Excel

The 22.2V 6S configuration is one of the most versatile in the portable power spectrum. It is not tied to a single application — which is exactly why it is the preferred voltage for so many different types of equipment.

Robots & Autonomous Guided Vehicles (AGVs)

Service robots, warehouse AGVs, and delivery robots commonly run on 22.2V power rails. The 55.5Wh capacity provides 4–6 hours of continuous operation for a medium-duty service robot, with the ability to support motor currents up to 5A for drivetrain motors. The compact form factor fits within robot chassis cavities where space is at a premium.

Vacuum Cleaners & Cordless Cleaning Equipment

Cordless stick vacuums, robot vacuums, and commercial floor scrubbers are classic 22.2V applications. The 6S voltage provides enough headroom for high-RPM brushless motors while keeping the pack small enough for handheld form factors. A 2,500mAh pack delivers 15–25 minutes of high-power vacuuming, sufficient for a standard apartment clean.

Medical Carts & Portable Diagnostic Equipment

Hospital carts, portable patient monitors, ultrasound devices, and infusion pumps often run on 22.2V. The UN38.3 and CE certifications on the HNF pack meet the documentation requirements for medical device power supplies, and the stable 22.2V output is compatible with most medical-grade DC-DC converters and power management modules.

Drones & FPV Aircraft

Small FPV drones and multi-rotor aircraft frequently use 6S LiPo or 6S Li-ion packs. The 22.2V nominal voltage drives 6-inch and 7-inch propellers efficiently, and the 2C continuous discharge rating is adequate for sustained flight at moderate throttle. For longer flight times, higher-capacity 6S packs (4,000mAh, 5,000mAh) are a direct swap.

Portable Industrial Instruments

Handheld barcode scanners, portable printers, thermal imaging cameras, and field measurement devices all benefit from the 22.2V power format. A single 6S pack can replace two 11.1V 3S packs in series, simplifying the power architecture and reducing connector count.

Stage Lighting & Mobile Photography Equipment

Battery-powered LED stage lights, photography ring lights, and mobile reflectors often run on 24V-compatible power systems. The 22.2V 6S pack sits at the right voltage to run these devices at full specification without the size and weight penalty of 7S (25.2V) packs.

6S vs 4S vs 7S: Choosing the Right Configuration

When selecting a lithium battery for your project, the series configuration is the most fundamental decision. Here is how 6S compares to its neighbors:

• 4S (14.8V): Compact, lightweight. Best for low-power handheld devices, compact tools, and applications where size is the primary constraint. Insufficient voltage for most motors rated for 24V systems.
• 6S (22.2V): The versatile middle ground. High enough for 24V motor systems, compact enough for mobile and handheld devices. Excellent ecosystem of compatible chargers and BMS modules.
• 7S (25.9V): Maximum power and runtime. Best for high-performance tools, larger drones, and industrial equipment that needs headroom above 24V nominal. Slightly larger and heavier than 6S.

For most portable equipment that was historically powered by two 11.1V 3S packs in series, a single 6S pack is a direct, simplified upgrade path.

OEM Customization Options

HNF Battery offers the 22.2V 6S pack in both standard and OEM configurations. Customization options include:

• Cell chemistry: NMC ternary (standard), LiFePO4 (for extended cycle life), or custom blends
• Capacity scaling: 2,000mAh to 5,000mAh in 6S configuration using standard 18650 or upgraded 21700 cells
• Housing: Standard blue PVC heat-shrink, or custom-molded ABS/PC enclosures with IP ratings
• Connector: Match to your device — Anderson, XT60, Molex, aviation connectors, or custom-molded plugs
• Communication: SMBus, I2C, or UART for BMS data readout into your device management system
• Branding: Custom labels, laser marking, and color-matched housings for distributor resale
• MOQ: Flexible quantities from prototype samples through high-volume production runs

For custom configurations, request an OEM quote with your specifications, target application, and projected volumes. Sample units are available for engineering validation.

Charging and Maintenance

A 6S Li-ion pack requires a balanced charger that charges each cell to 4.2V individually. Standard charge current is 1C (2,500mA for this pack), bringing a full charge in approximately 3 hours with a quality CC/CV charger. Fast charge at 2C (5,000mA) is supported, reducing charge time to ~90 minutes at elevated temperatures.

Storage guidelines: For extended storage (more than one month), keep the pack at 40–60% state of charge (approximately 21–22V for a 6S pack) in a cool, dry environment. Avoid storing fully charged or fully depleted — both accelerate capacity fade.

Conclusion: Is the 22.2V 6S Pack the Right Choice?

The 22.2V 6S1P 18650 configuration is the most broadly applicable lithium-ion pack format in the mid-voltage range. If your device runs on a 24V-compatible power rail, needs 50–200W of sustained power, and benefits from a compact form factor — the 6S pack is almost certainly the right starting point.

Whether you are sourcing batteries for a robot fleet, a new medical device, or a consumer product line, the 22.2V 6S ecosystem gives you the widest choice of compatible chargers, BMS modules, and integration accessories.

Browse the full specifications at 22.2V 6S1P 2500mAh Li-ion Battery Pack (18650, 55.5Wh), or request a free sample for your engineering team. For custom configurations, volume pricing, or OEM branding, contact the HNF Battery OEM team.
