10.8V 140Ah 1512Wh Custom Li-ion Battery Pack with Smart BMS: Applications & OEM Guide

When engineering a portable power system, the difference between a good battery and a great one often comes down to one feature: intelligent battery management. The 10.8V 140Ah 1512Wh Li-ion pack from HNF Battery goes beyond simple voltage and capacity specs. It ships with a dedicated Smart Battery System — an external LCD monitoring module that delivers real-time voltage, current, remaining capacity, and cell temperature data to the operator.

This guide covers the technical fundamentals of this pack, what makes the Smart BMS a meaningful upgrade, the application scenarios it serves best, and how to specify it for your OEM or custom project.

Technical Overview: What 10.8V 140Ah Actually Means

The pack operates at a nominal voltage of 10.8V, achieved through a 3S lithium-ion configuration (3 cells in series). This is a standard configuration for portable power systems that need medium voltage with high current capability — different from the 12V lead-acid batteries it often replaces.

Key specifications at a glance:

• Nominal voltage: 10.8V (3S Li-ion)
• Capacity: 140Ah / 1,512Wh energy density
• Weight: 6.5kg
• Charge voltage: 12.6V max (4.2V per cell)
• Discharge cutoff: 8.25V (2.75V per cell)
• Max continuous discharge: 30A
• Operating temp: -20°C to 45°C (discharge)
• Certifications: UN38.3, CE, RoHS

At 1,512Wh, this pack stores roughly the equivalent energy of a small generator — in a 6.5kg self-contained unit small enough to carry. That energy density ratio (233Wh/kg) is roughly 4–5× better than a comparable lead-acid battery.

What Makes This Pack Different: The External Smart BMS Module

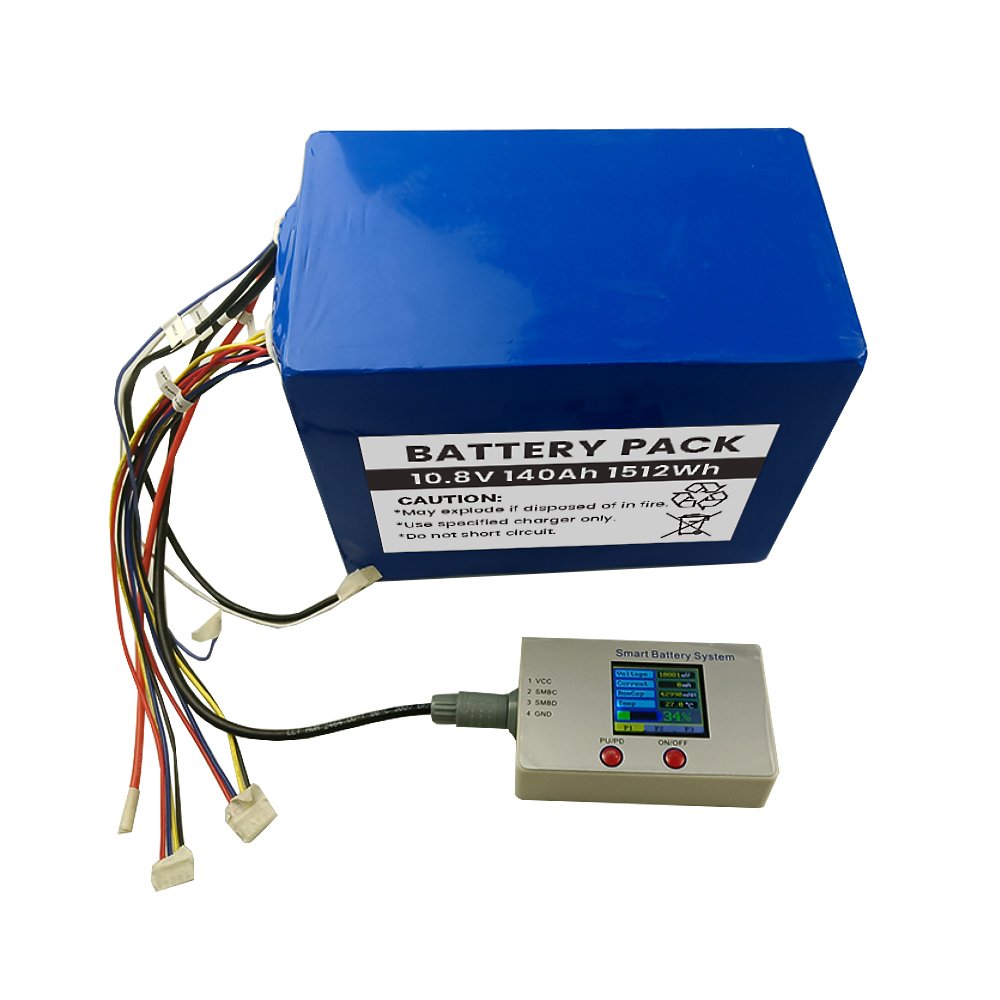

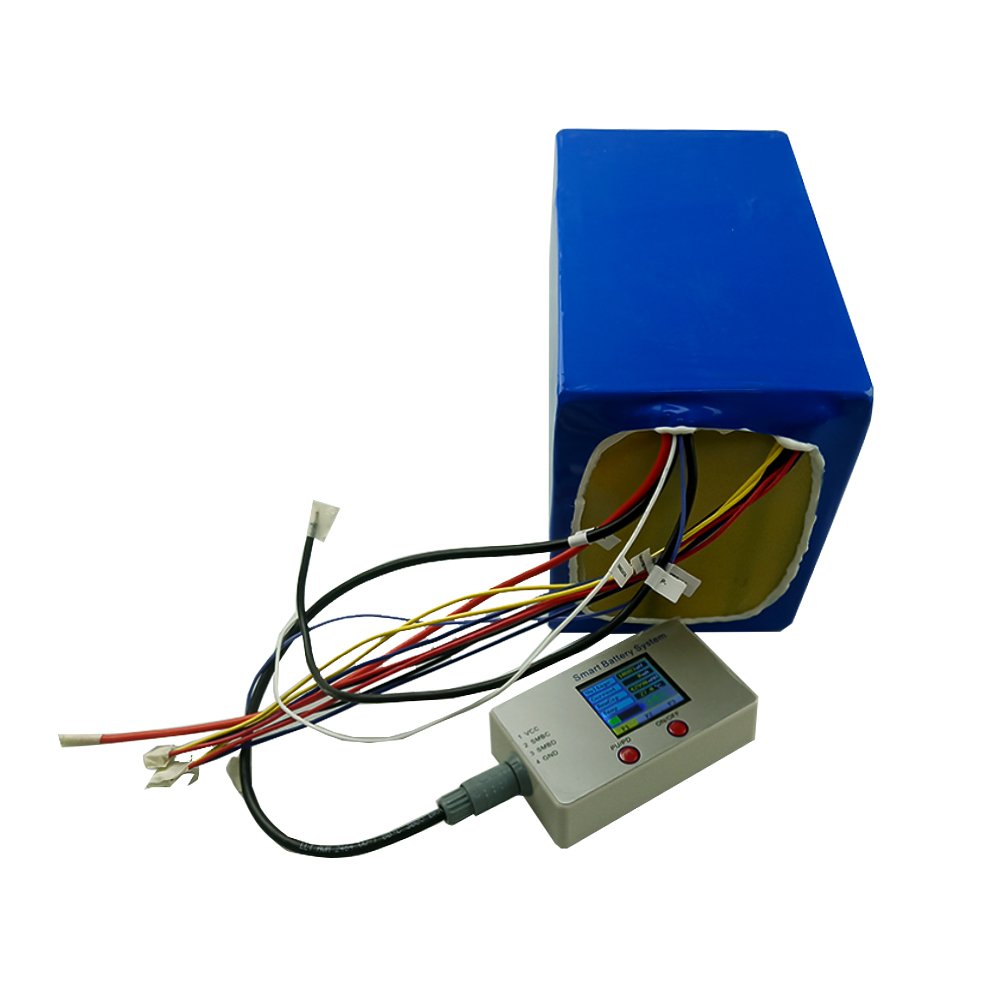

Unlike most lithium battery packs that hide all monitoring data inside a sealed housing, this pack includes a dedicated external Smart Battery System monitoring module. The LCD display shows real-time data via a communication interface:

• Voltage: Live pack voltage in mV
• Current: Real-time charge/discharge current in mA
• Remaining Capacity (RemCap): How much charge is left in mAh
• Temperature: Cell temperature in °C
• State of Charge (SOC): Percentage of remaining capacity

The monitoring module connects via a standard communication bus (SMBC/SMBD pins) and gives system integrators and end users the transparency that industrial applications demand. This is particularly valuable in:

• Medical devices — operators need to know exactly how much runtime remains
• Solar storage systems — state-of-charge monitoring is essential for energy management
• Industrial equipment — prevents unexpected shutdowns during critical operations

BMS Protection Features

Behind the LCD display, the integrated battery management system provides layered protection for both the cells and the connected equipment:

• Over-charge protection: Shuts down charging if any cell exceeds 4.25V
• Over-discharge protection: Disconnects the load if pack drops below 8.25V
• Over-current protection: Limits discharge to 30A continuous, higher peak
• Short circuit protection: Instant disconnection in the event of a fault
• Temperature monitoring: Both charging and discharging are halted outside safe temperature windows
• Cell balancing: Passive balancing keeps all cells at equal charge levels, maximizing pack cycle life

Application Scenarios

The 10.8V 140Ah 1512Wh configuration is one of the most versatile in the custom battery portfolio. Here are the applications where this pack most commonly appears:

Portable Power Stations & Outdoor Energy Storage

At 1,512Wh with a 30A continuous discharge capability, this pack is well-suited for compact portable power stations in the 1–2kWh class. It can run a 100W laptop for ~15 hours, a mini fridge for 10–12 hours, or power a campsite setup of lights, fans, and phone chargers for a full weekend. The Smart BMS SOC display is particularly valuable in outdoor scenarios where battery state is hard to predict.

Solar Energy Storage Systems

Small residential solar installations and off-grid solar kits frequently use 3S lithium packs as the storage medium. The 1,512Wh capacity is ideal for a single-day solar buffer — capturing solar generation during the day and delivering power in the evening. The voltage range (10.8V nominal, 8.25V–12.6V operating) is compatible with standard MPPT solar charge controllers configured for 3S Li-ion.

Medical Device Power

Medical equipment manufacturers increasingly specify custom Li-ion packs for portable diagnostic devices, infusion pumps, patient monitors, and mobile imaging units. The UN38.3 + CE + RoHS certifications, combined with the Smart BMS real-time data output, make this pack suitable for devices that require documented battery health for regulatory compliance.

Mobility Scooters & Electric Wheelchairs

A 10.8V 140Ah pack delivers significantly more range than conventional lead-acid setups (which typically require 2× the weight for equivalent energy). At 6.5kg, it is within the weight budget for a mobility device that a user might need to lift for transport. The BMS over-discharge protection is a critical safety feature in mobility applications.

AGVs, Industrial Robots & Warehouse Equipment

Automated guided vehicles (AGVs) and small industrial robots often run on 10.8V–14.8V power rails. The 30A continuous discharge capability handles the high inrush current of DC motors, while the Smart BMS communication bus can feed into the vehicle’s own management system via standard protocols.

Marine & RV Auxiliary Power

For marine electronics, fish finders, trolling motors, and onboard communication equipment, a 1,512Wh Li-ion house bank replaces bulky lead-acid batteries without the weight penalty. The wide operating temperature range (-20°C to 45°C) covers most marine environments.

Connector & Integration Options

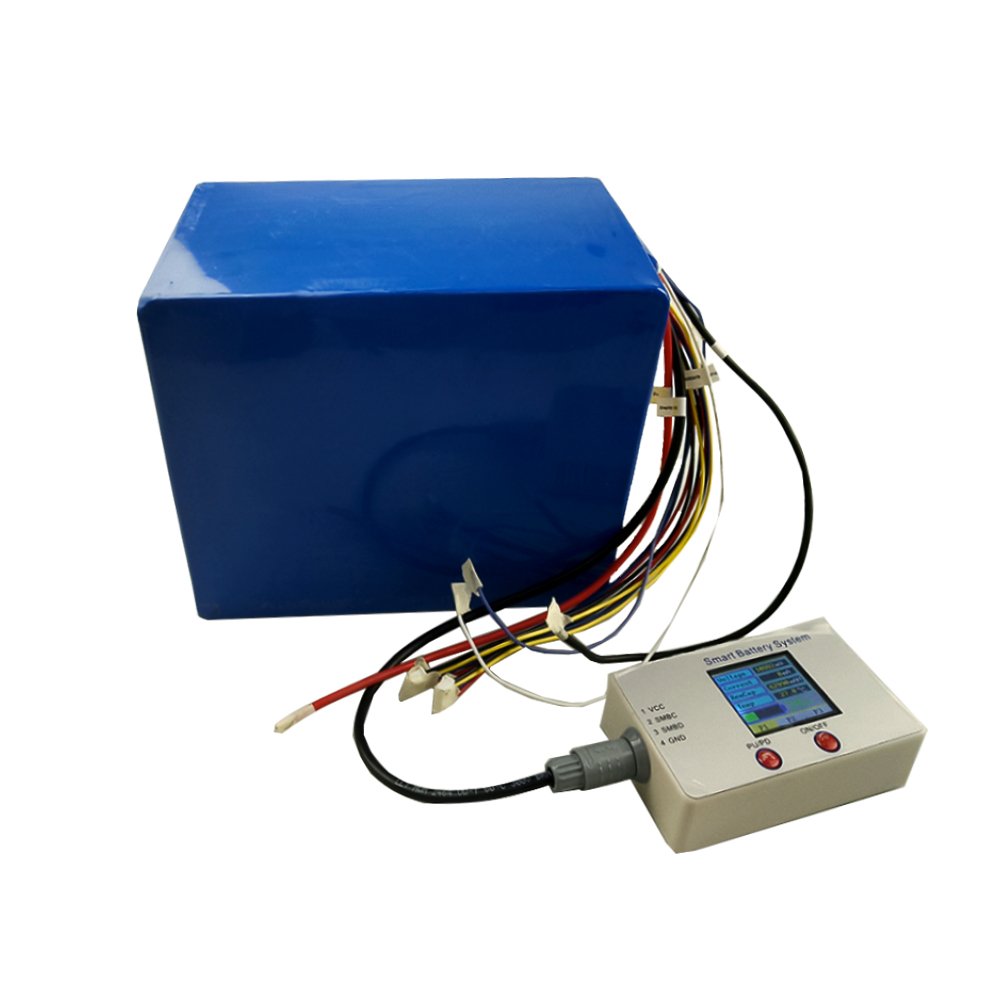

The pack ships with color-coded cables and standard connectors for straightforward system integration:

• Red cable: Positive terminal (+)
• Black cable: Negative terminal (-)
• Yellow / Blue / White cables: Cell balancing leads (SMBC/SMBD/GND) for Smart BMS communication
• JST/XH connector types: Standard 2.54mm pitch for easy connection to charge controllers and DC-DC converters

HNF Battery offers custom connector configurations for OEM projects, including Anderson connectors, XT60/XT90, aviation connectors, and custom-molded plugs. Cable length, gauge, and termination are all specifiable.

OEM & Custom Configuration Options

This pack is available as a standard product and as a custom OEM configuration. HNF Battery works with system integrators and product manufacturers to adapt the following parameters:

• Cell chemistry: NMC, LiFePO4, or custom ternary blends
• Capacity: Scale up or down within the 3S format
• Form factor: Custom housing shapes, mounting brackets, IP-rated enclosures
• Communication protocol: RS485, CAN bus, or custom protocol for BMS integration
• Charge connector: Match your existing charger inlet
• Branding: Custom labels, laser marking, color-matched housing
• MOQ: Flexible minimum order quantities for prototyping and production runs

For custom configurations, request an OEM quote with your target application, required specifications, and projected volumes. HNF Battery provides sample units for validation before production orders.

Comparison: Li-ion vs Lead-Acid for 1.5kWh Applications

If you are replacing a lead-acid battery bank with a 10.8V 140Ah Li-ion pack, here is how the numbers compare:

• Weight: Li-ion 6.5kg vs lead-acid ~45kg for equivalent 1.5kWh (87% lighter)
• Cycle life: Li-ion 1,000–2,000 cycles @ 80% DoD vs lead-acid 300–500 cycles
• Usable capacity: Li-ion 100% vs lead-acid 50% (depth of discharge limit)
• Self-discharge: Li-ion 2–3%/month vs lead-acid 4–6%/month
• Maintenance: Li-ion zero maintenance vs lead-acid monthly water checks
• Form factor: Li-ion compact rectangular vs bulky heavy lead-acid blocks

For most modern applications, the Li-ion upgrade is not just a performance decision — it is a total cost of ownership decision. The higher upfront cost of Li-ion is typically recovered within 18–24 months through reduced maintenance, longer life, and lighter weight.

Conclusion: Is the 10.8V 140Ah Smart BMS Pack Right for Your Project?

The 10.8V 140Ah 1512Wh pack with Smart BMS fills a specific niche: applications that need high energy density, intelligent monitoring, and a medium voltage format in a self-contained, certification-ready package. The real-time LCD data output is not a gimmick — it is the feature that makes this pack suitable for medical, industrial, and safety-critical applications where battery state transparency is required.

Whether you are building a next-generation portable power station, specifying batteries for an industrial robot, or sourcing a replacement pack for a mobility device, this configuration is worth evaluating.

Browse the full product specs at 10.8V 140Ah 1512Wh Li-ion Pack with Smart BMS, or request a free sample for your engineering validation. For custom configurations, branding, or volume pricing, contact the HNF Battery OEM team.
