DeWalt 20V MAX Battery Upgrade Guide: 18650 to 21700 Cell Migration Explained

If you own a fleet of DeWalt 20V MAX tools, you’ve probably asked the same question every contractor has: can I get more runtime, less weight, and a longer-lasting battery without buying new tools?

The short answer is yes — and the migration from 18650 to 21700 lithium-ion cells is the single biggest performance jump DeWalt-compatible batteries have seen in years. This guide explains what changed, why it matters, and how to evaluate an upgraded DCB205-5 replacement pack for your fleet.

Why 21700 Cells Are Replacing 18650 in Power Tool Batteries

For the better part of a decade, 18650 cells (18mm diameter × 65mm length) were the workhorse of the cordless tool industry. They powered every DeWalt 20V MAX, Milwaukee M18, and Makita 18V LXT battery you’ve bought since 2010. But 18650 cells hit a physical ceiling: more energy density meant wider or longer cells, not just better chemistry.

21700 cells (21mm × 70mm) solve that problem. By going slightly larger in both dimensions, they pack roughly 50% more energy per cell while keeping the same cylindrical form factor. The result: lighter packs, more capacity, or both.

Side-by-side comparison:

• 18650 cell (typical 3000mAh): 18mm × 65mm, ~45g per cell
• 21700 cell (typical 5000mAh): 21mm × 70mm, ~70g per cell
• Energy per gram: 21700 wins by ~40%
• Energy per cubic cm: 21700 wins by ~25%

For a 5-cell power tool pack, this translates directly into smaller, lighter, longer-running batteries — or the same form factor with significantly more capacity.

DCB205 vs DCB205-5: What Actually Changed

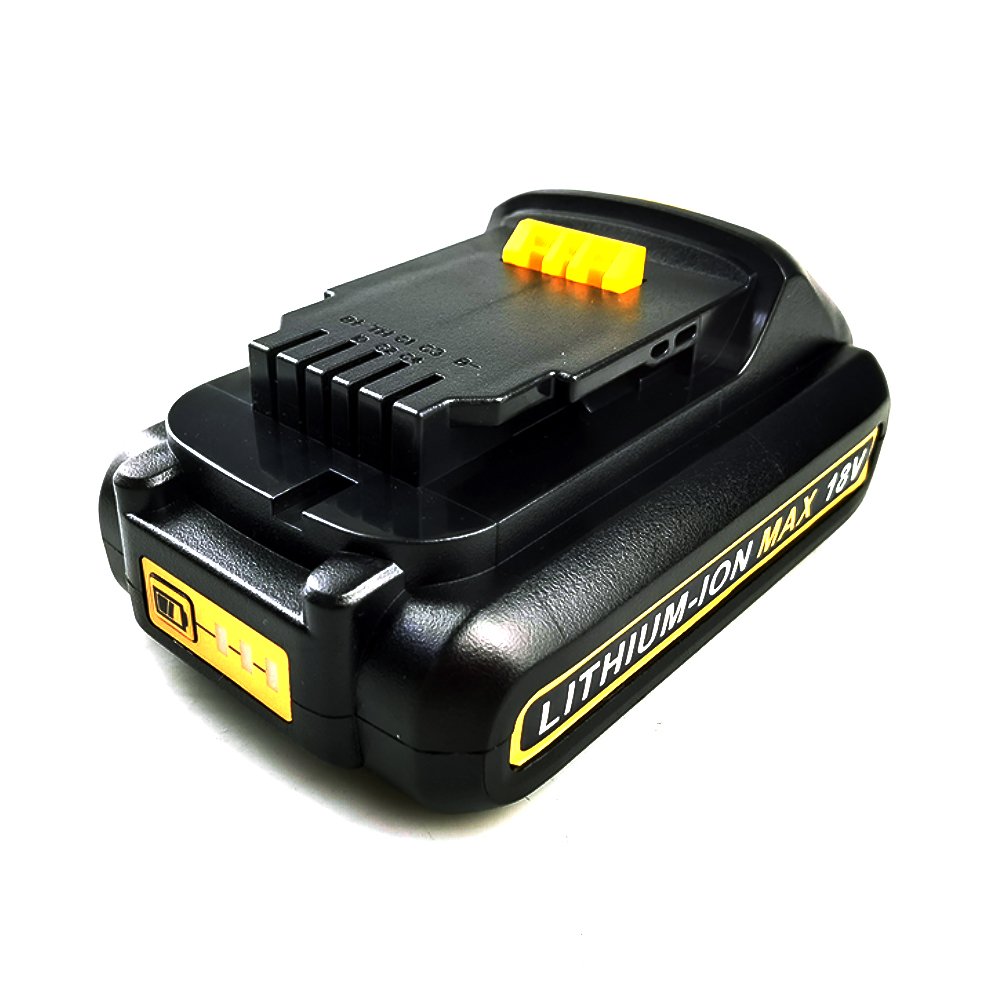

The original DeWalt DCB205 pack (5S1P configuration, 5 × 18650 cells in series) was a 3.0Ah / 55.5Wh battery with a reputation for solid runtime but noticeable weight. The new DCB205-5 upgrade uses the same 5S1P layout but migrates from 18650 to 21700 cells, keeping capacity at 3.0Ah (55.5Wh) while reducing pack weight by roughly 15–17%.

In a 5S1P configuration, the upgrade is mostly a weight and thermal-efficiency win rather than a capacity win. The cells themselves are higher-capacity, but only one in series means total pack capacity stays in the same range. The real gains are:

• Lighter pack weight — easier on your wrist during all-day drilling or grinding
• Lower internal resistance — less voltage sag under heavy load (1C continuous discharge)
• Better thermal headroom — 21700 cells dissipate heat more efficiently, prolonging cycle life

For an upgrade that boosts both capacity and runtime, look for 5S2P or 5S3P 21700 configurations, which double or triple capacity by adding parallel cell strings. These are the packs contractors are increasingly specifying for high-drain tools like circular saws, rotary hammers, and 4-1/2" angle grinders.

Compatibility: Will a DCB205-5 Pack Work With My Tools?

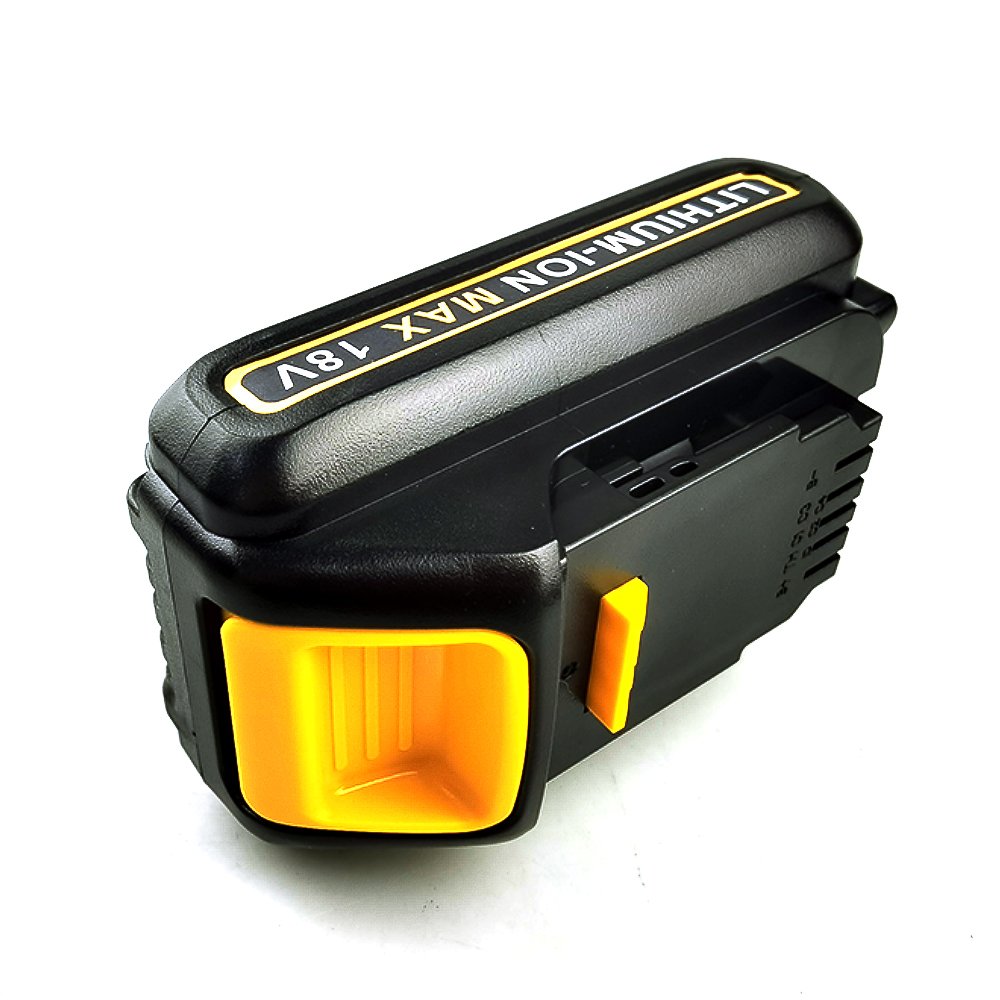

If your DeWalt tool accepts a DCB205, DCB205-2, DCB204, or DCB206 form factor, an upgraded DCB205-5 pack is a drop-in replacement. The mounting rail, electrical contacts, and release button geometry are identical to the original 18650-based DCB205.

Compatible DeWalt 20V MAX tool families include:

• Drills and drivers: DCD771, DCD777, DCD780, DCD785, DCD791, DCD795, DCD996, DCD997
• Impact drivers: DCF801, DCF809, DCF815, DCF885, DCF886, DCF887, DCF888, DCF899
• Impact wrenches: DCF889, DCF890, DCF891, DCF892, DCF894, DCF899
• Grinders: DCG405, DCG406, DCG412, DCG413, DCG414, DCG418
• Circular and reciprocating saws: DCS367, DCS368, DCS380, DCS381, DCS388, DCS570, DCS575, DCS576, DCS590
• Rotary hammers: DCH133, DCH143, DCH172, DCH253, DCH273, DCH283, DCH293, DCH481

Always verify your tool’s battery footprint matches the DCB205 form factor before purchasing. Tools designed for the larger FlexVolt 60V MAX / 20V MAX packs (DCB606) require a different battery shell.

Five Real-World Benefits of a 21700 DCB205-5 Upgrade

If you’re a contractor or facilities manager considering a fleet-wide upgrade, here are the gains you can expect on the job site:

1. Lighter Pack, Less Fatigue

A 21700-based 5S1P pack typically weighs 500g vs 600g for the legacy 18650 version. Over an 8-hour shift with a drill or impact driver, that 100g difference per battery adds up to meaningful wrist and forearm savings.

2. Less Voltage Sag Under Load

21700 cells have lower internal resistance (~120mΩ for a well-built 5S1P pack). Under a 6A continuous draw (1C), the pack delivers closer to its nominal voltage, meaning more usable power at the tool and less RPM drop when the battery is below 50% state of charge.

3. Faster Charging

Because 21700 cells handle higher charge currents without excessive heat rise, a 0.5C fast charge (2A) reaches full capacity in ≤ 4 hours, vs ≤ 6 hours for many legacy 18650 packs. On a multi-battery rotation, this is a 30%+ productivity gain.

4. Longer Cycle Life

21700 cells run cooler under load and during charging, which directly translates to longer cycle life. A quality 21700-based pack typically delivers 500–800 full charge cycles before reaching 80% capacity, vs 300–500 cycles for an equivalent 18650 pack.

5. UN38.3 Certified for Global Shipping

Whether you’re a distributor shipping internationally or a contractor flying to job sites, UN38.3 certification is non-negotiable. Quality DCB205-5 replacement packs from reputable manufacturers carry this certification and the full MSDS documentation required for air freight.

How to Evaluate a DCB205-5 Replacement Pack

Not all DCB205-5 packs on the market are equal. When evaluating a replacement, ask your supplier these questions:

• Cell manufacturer: Look for 21700 cells from tier-1 suppliers (Samsung, LG, Molicel, EVE). Avoid unbranded cells.
• BMS protection: Integrated battery management system with over-charge, over-discharge, over-current, short circuit, and thermal protection.
• Certifications: UN38.3, MSDS, CE, RoHS, and ISO 9001 quality management.
• Capacity verification: Rated capacity (3.0Ah) at 0.2C discharge, minimum capacity (2.85Ah) — the spec sheet should list both.
• Internal resistance: Around 120mΩ is typical for a well-built 5S1P 21700 pack.
• Operating temperature: Discharge from -20°C to 45°C, charge from 0°C to 45°C — verify, don’t assume.

If your supplier hesitates on any of these, walk away. The cheapest pack on the market is rarely the best value over a 2–3 year ownership window.

Conclusion: Is a 21700 DCB205-5 Worth the Upgrade?

If you already own DeWalt 20V MAX tools and want to extend their useful life, a 21700-based DCB205-5 replacement is a smart, low-risk upgrade. You’ll get a lighter pack, lower voltage sag, faster charging, and longer cycle life — all while keeping every tool in your existing fleet running.

For higher-capacity needs (5.0Ah, 6.0Ah, 9.0Ah), look for 5S2P or 5S3P 21700 configurations. These packs deliver significantly more runtime per charge and are ideal for high-drain tools like circular saws and rotary hammers.
