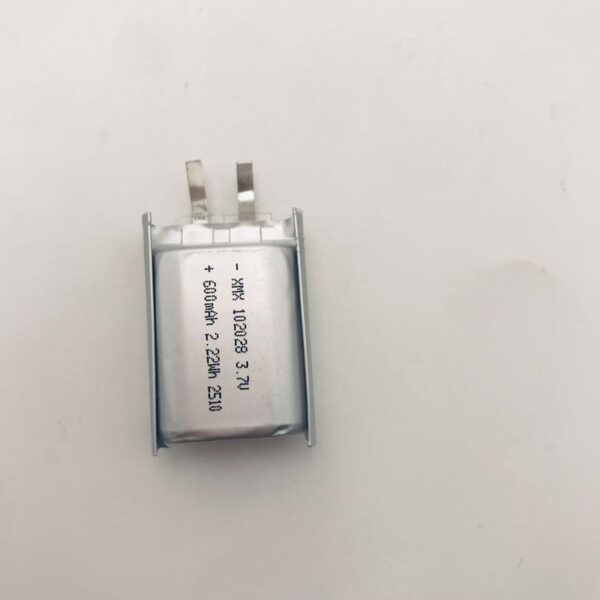

102028 3.7V 600mAh LiPo Battery
$0.80
102028 3.7V 600mAh LiPo battery for smart pet feeders, compact cell also suited for electronic thermometers and small IoT gadgets.
Model number: HNF-102028 600mAh 3.7V
Nominal voltage: 3.7 V
Nominal capacity: 600 mAh
Dimension: 10 x 20 x 28 mm
Cell configuration: 1S1P
Certification: CE / RoHS / IEC62133 / UN38.3 / MSDS
Warranty: 12 months
Specifications
| Item | Rating | Remark |
|---|---|---|
| Model | HNF-102028 600mAh 3.7V | 10 x 20 x 28 mm |
| Nominal Capacity | 600 mAh | Standard discharge (0.2C5A) after standard charge |
| Nominal Voltage | 3.7 V | |
| Cut-off Charge Voltage | 4.2 V | |
| Cut-off Discharge Voltage | 3.0 V | |
| Weight | Approx: 10 g | |
| Standard Charge | 0.2C CC charge to 4.2V, then CV (4.2V) till current ≤0.01C | Charge time: approx. 7.0 h |
| Standard Discharge | Discharge at 0.2C5A to 3.0V | |
| Cycle Life | ≥500 cycles (80% capacity retention) | |
| Operating Temperature | Charge 0~+45℃ / Discharge -20~+60℃ | |
| Storage Temperature | -10~+25℃ ≤12 months | |
| Storage Humidity | 45-75% RH |
Application Field
Wearable devices, Bluetooth headsets and wireless earphones, portable speakers, dashcams and GPS trackers, action cameras, IoT sensors and smart home modules, medical monitors, mobile accessories and handheld games.
Main Advantages
- High energy density, stable 3.7V nominal voltage
- High-drain capable, stable discharge performance
- Lightweight and ultra-thin; dimensions customizable on request
- Extremely safe, low self-discharge, long cycle life (500+ cycles)
- Reliable PCM protection against over-charge and over-discharge
- Wide operating temperature: -20℃ ~ +60℃
FAQ
Q: Do you accept customization?
A: Yes. We are a professional custom lithium battery manufacturer. Share your required voltage, capacity, and dimensions.
Q: Can this be shipped by air?
A: 2.22 Wh — well within the 100Wh limit, suitable for air freight with MSDS & UN38.3 documentation.
Q: Do you offer samples?
A: Samples are available; sample cost is refunded once a bulk order is confirmed.
Q: What is the MOQ?
A: In-stock items have no MOQ. For customized cells, MOQ is typically 3,000-10,000 pcs depending on size and capacity.
Q: How is quality assured?
A: Multi-stage quality control across R&D, incoming inspection, production, pre-shipment, and after-sales, fully certified with CE, RoHS, and IEC62133.
