10000 11.1V 10000mAh LiPo Battery
$13.80
Model 10000 11.1V 10000mAhlithium polymer battery. High energy density with built-in BMS protection. Ideal for specialized industrial and custom applications. Custom sizes available. HNF Battery manufacturer.

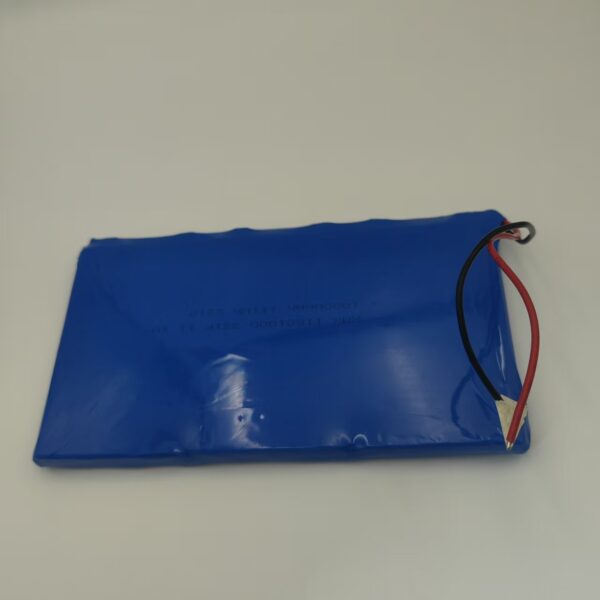

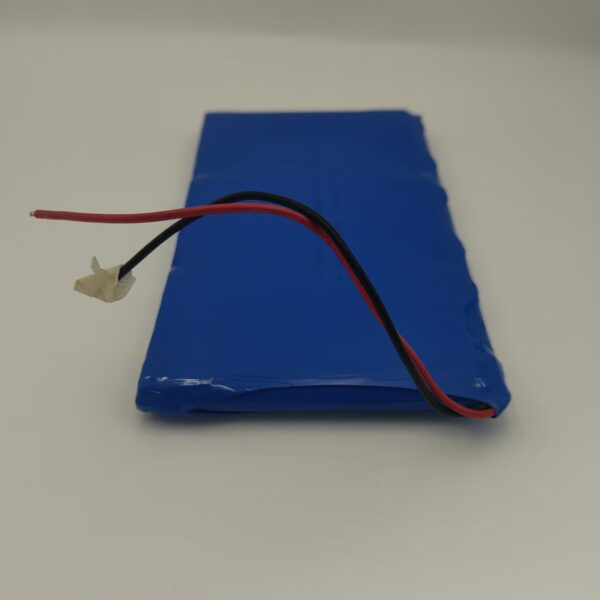

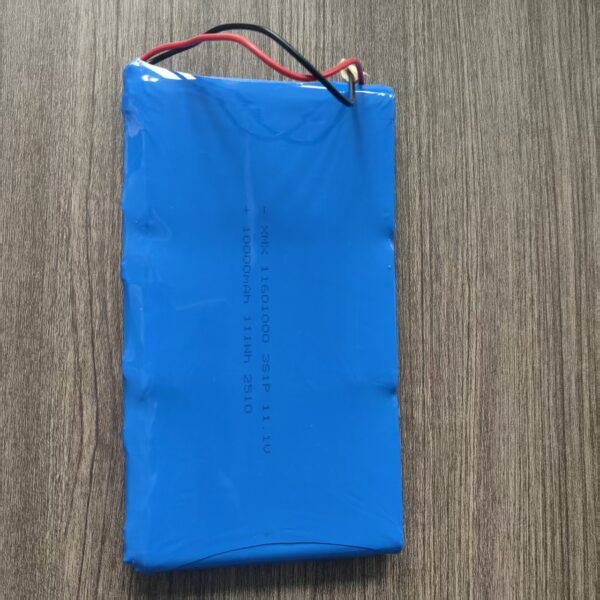

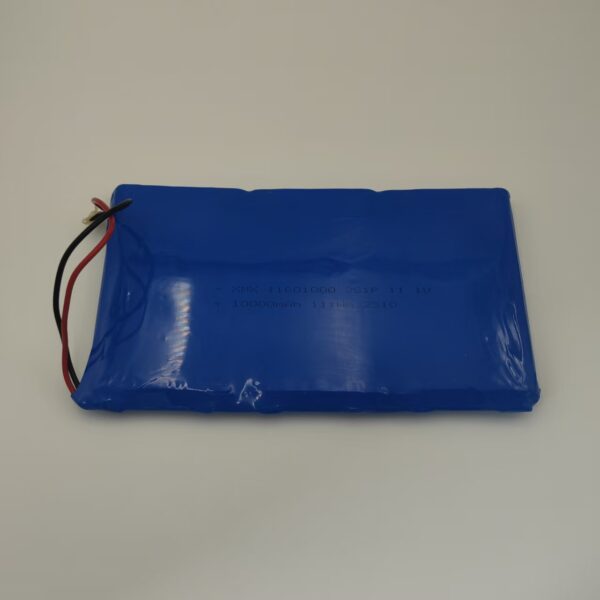

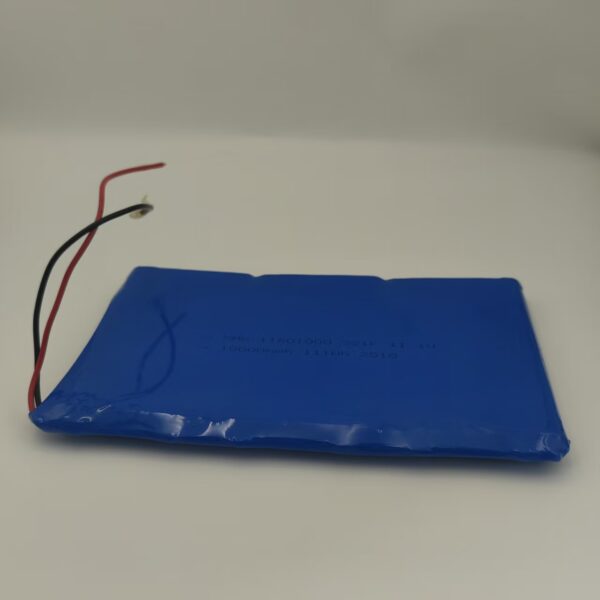

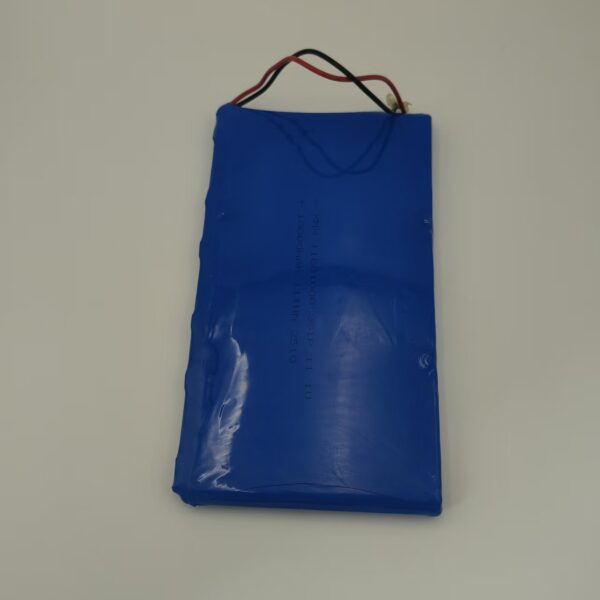

🔋 11.1V 10000mAh LiPo Battery Pack — 3S1P High Capacity Rechargeable Lithium Polymer Battery
Overview
This 3S1P lithium polymer battery pack delivers a powerful 11.1V / 10000mAh (111Wh) by connecting three high-grade LiPo cells in series. Engineered for high-voltage, high-capacity industrial applications, it provides stable multi-hour runtime for drones, AGVs, industrial robots, portable power stations, and medical equipment. Integrated BMS with cell balancing, overcharge, over-discharge, and short-circuit protection ensures safe and reliable operation across demanding environments. CE and UN38.3 certified, with full OEM/ODM customization available.
Key Specifications
| Parameter | Specification |
|---|---|
| Configuration | 3S1P (3 cells in series) |
| Nominal Voltage | 11.1V |
| Fully Charged Voltage | 12.6V |
| Capacity | 10000mAh |
| Energy | 111Wh |
| Internal Resistance | ≤ 150mΩ |
| Weight | ≈ 620g |
| Charge Voltage | 12.6V |
| Recommended Charge | 0.5C = 5A CC/CV |
| Max Charge Current | 10A (1C) |
| Continuous Discharge | 10A (1C) |
| Peak Discharge | 20A (2C) |
| Discharge Cut-off | 9.0V (3.0V/cell) |
| Self-discharge Rate | ≤ 3% / month |
| Cycle Life | ≥ 500 cycles |
| Capacity Retention | ≥ 80% after 500 cycles |
| Operating Temp | -20°C ~ 60°C |
| Storage Temp | -10°C ~ 45°C |
| Connector | XT60 / Anderson / custom |
| Balance Connector | JST-XH 4Pin (3S) |
| Certification | CE / UN38.3 / RoHS |
3S1P Configuration Explained
Cell 1 (3.7V) ──┐
Cell 2 (3.7V) ──┤ Series → 11.1V total
Cell 3 (3.7V) ──┘
Total Voltage = 3.7V × 3 = 11.1V
Total Capacity = 10000mAh (same as single cell)
Total Energy = 11.1V × 10Ah = 111Wh⚠️ Charging requirement: Must use a 3S-compatible balance charger set to 12.6V / 3S LiPo mode. Never charge with a single-cell 4.2V charger. Balance charging is strongly recommended to maintain cell health and safety.
BMS Protection Details
| Protection | Threshold | Function |
|---|---|---|
| ⚡ Overcharge per cell | Cutoff at 4.25V/cell | Prevents thermal runaway |
| 🔋 Over-discharge per cell | Cutoff at 3.0V/cell | Preserves cycle life |
| ⚖️ Cell balancing | Auto during charge | Equalizes all 3 cells, extends pack life |
| 🔥 Overcurrent | Trips at >20A | Protects wiring & device circuits |
| ⚠️ Short-circuit | Instant cutoff | Critical safety for field environments |
| 🌡️ Over-temperature | Cutoff at >70°C | Thermal protection in enclosed housings |
| 🔁 Auto-recovery | After fault cleared | Resumes normal operation automatically |
11.1V Pack — Voltage Stage Comparison
| Pack | Voltage | Config | Energy | Typical Application |
|---|---|---|---|---|
| Single cell | 3.7V | 1S1P | 37Wh | Consumer devices |
| 754543 | 7.4V | 2S1P | 13.3Wh | Robot vacuums, tools |
| This pack ⭐ | 11.1V | 3S1P | 111Wh | Industrial, drones, AGV |
| Custom 4S | 14.8V | 4S1P | 148Wh | Heavy drones, e-bikes |
| Custom 5S | 18.5V | 5S1P | 185Wh | High-power industrial |
Features
- ✅ 111Wh high energy — multi-hour runtime for industrial & field equipment
- ✅ 3S1P series configuration — stable 11.1V output for motor-driven systems
- ✅ Integrated BMS — full cell balancing + 5-layer protection standard
- ✅ Auto cell balancing — maintains equal cell voltage, maximizes pack lifespan
- ✅ High discharge capability — 10A continuous, 20A peak for motor & actuator loads
- ✅ Wide temperature range — -20°C ~ 60°C, reliable in outdoor & industrial environments
- ✅ Low self-discharge — ≤3%/month, suitable for intermittent-use field equipment
- ✅ ≥500 cycle life — 80% capacity retention, long operational service life
- ✅ CE & UN38.3 certified — EU market & global freight compliant
- ✅ Full OEM/ODM support — custom voltage, capacity, housing, connector & BMS
Applications
| Industry | Typical Devices |
|---|---|
| 🤖 Robotics & Automation | Industrial robots, collaborative arms, AGV carts |
| 🚁 Aerial & UAV | Survey drones, inspection UAVs, agricultural sprayers |
| 🔧 Power Tools | Cordless industrial tools, electric winches, power cutters |
| 🏥 Medical Equipment | Mobile surgical carts, portable imaging systems, infusion pumps |
| ⚡ Portable Power | Portable power stations, emergency backup units, field UPS |
| 🏭 Industrial Handheld | Rugged tablets, mobile workstations, field data terminals |
| 🚗 Light EV | Electric scooters, golf carts, low-speed utility vehicles |
| 🔒 Security & Defense | Portable radios, surveillance systems, EOD equipment |
Runtime Estimation Guide
| Device Power Draw | Estimated Runtime |
|---|---|
| 10W (sensors, IoT hub) | ≈ 11 hours |
| 20W (handheld terminal) | ≈ 5.5 hours |
| 50W (industrial robot joint) | ≈ 2.2 hours |
| 100W (mid-size drone) | ≈ 1.1 hours |
| 200W (heavy power tool) | ≈ 33 minutes |
📌 Estimates based on 111Wh nominal energy at 85% system efficiency. Actual runtime varies by load profile and temperature.
OEM / Custom Options
| Option | Details |
|---|---|
| Voltage | 7.4V (2S) / 11.1V (3S) / 14.8V (4S) / 22.2V (6S) / custom |
| Capacity | 5000mAh – 30,000mAh |
| Cell configuration | 2S / 3S / 4S / 5S / nS nP custom |
| Housing | Soft pack / hard case / custom enclosure |
| Connector | XT30 / XT60 / Anderson / Deans / custom |
| Balance connector | JST-XH 4Pin (3S) / custom |
| Wire gauge | AWG10 ~ AWG20 per discharge rating |
| BMS | Standard protection / Smart BMS with UART / CAN bus / fuel gauge |
| Certification | CE, UN38.3, RoHS, UL, IEC 62133 on request |
| Branding | OEM / white-label labeling & packaging |
| MOQ | 10 pcs |
🔧 High-power project? We support custom BMS with CAN bus / UART / SMBus communication for integration with industrial control systems.
Certification & Compliance
| Certificate | Scope | Status |
|---|---|---|
| ✅ CE | EU market compliance | Standard |
| ✅ UN38.3 | Global air & sea freight | Standard |
| ✅ RoHS | Hazardous substance compliance | Standard |
| ✅ MSDS | Material safety data sheet | Standard |
| 📋 UL 2054 | US market battery safety | On request |
| 📋 IEC 62133 | Portable battery safety | On request |
| 📋 KC | Korea market | On request |
🚢 Shipping note: At 111Wh, this pack falls below the 160Wh IATA air freight threshold for lithium batteries — eligible for air shipping as Class 9 DG cargo with UN38.3 certification.
Why Choose Us?
- 🏭 Factory Direct — own production lines, zero intermediaries, best industrial pricing
- ⚙️ 3S/4S pack expertise — multi-cell series pack engineering is our core competency
- 🛡️ BMS with cell balancing standard — every pack protected and balanced
- 📋 CE + UN38.3 ready — full DG documentation for industrial procurement compliance
- 🔬 In-house R&D — custom voltage / capacity / BMS / housing in 10-day sample turnaround
- 🏭 Rugged housing options — soft pack or hard case enclosure for industrial environments
- 🚢 DG logistics expertise — large-format LiPo pack shipping worldwide
- 🛠️ End-to-end OEM — from spec sheet to certified mass production
📩 Share your device voltage, current draw & space constraints — we’ll engineer the optimal 3S or custom pack solution within 24 hours.
