606090 7.4V 4000mAh LiPo Battery

Product Overview

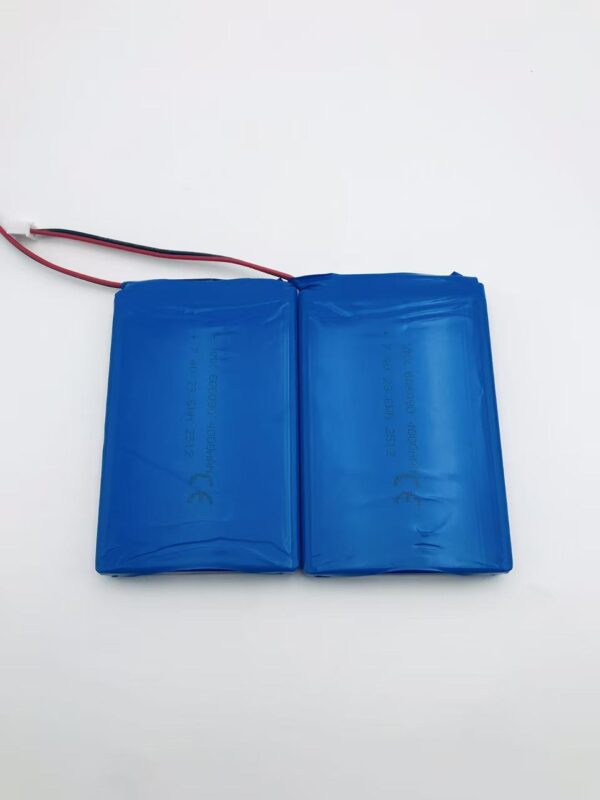

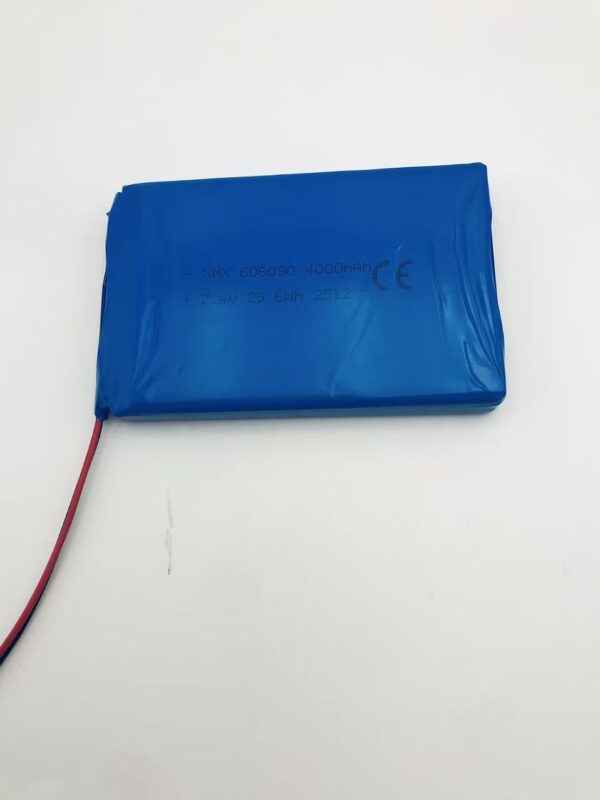

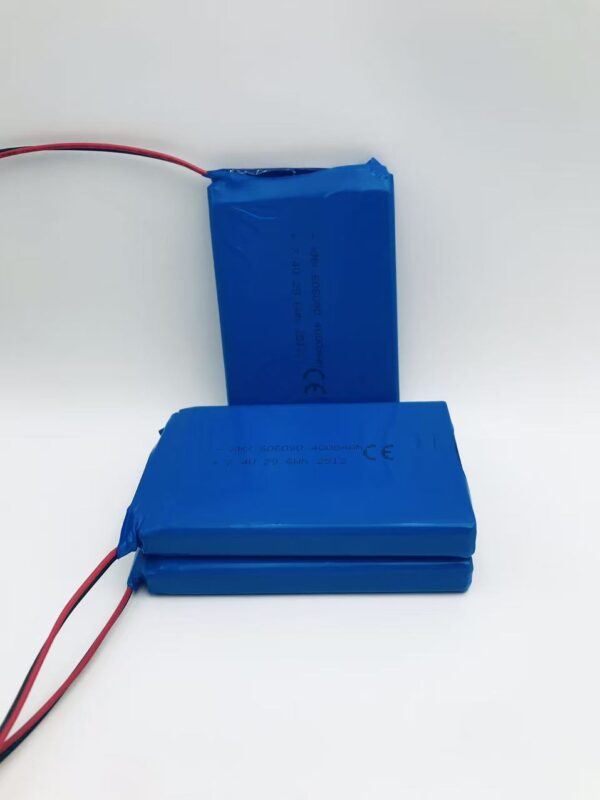

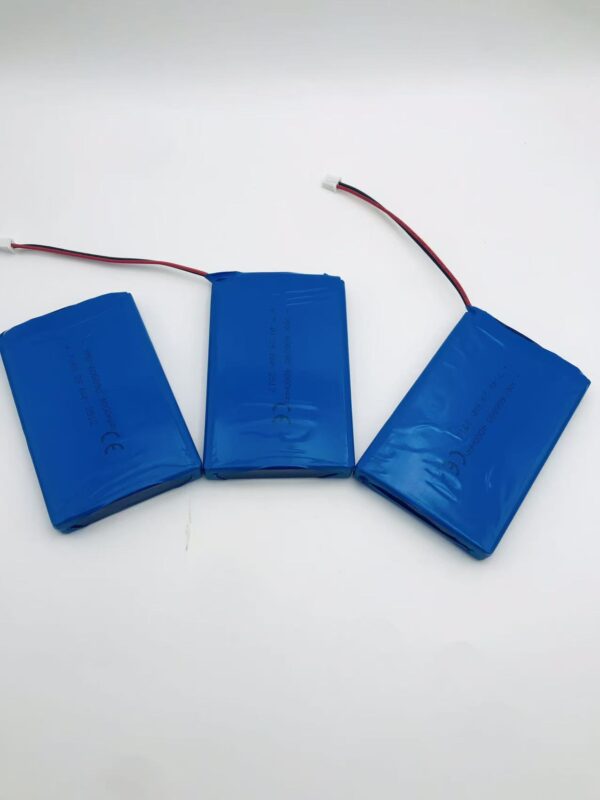

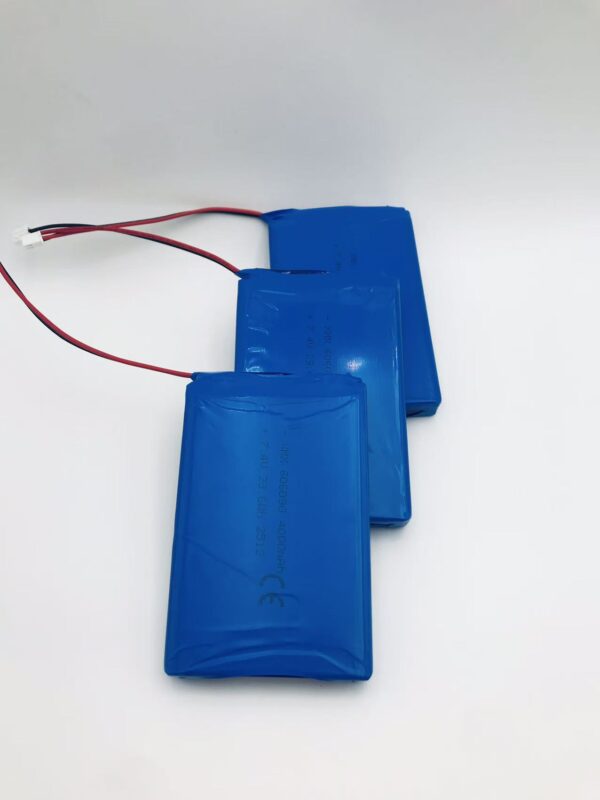

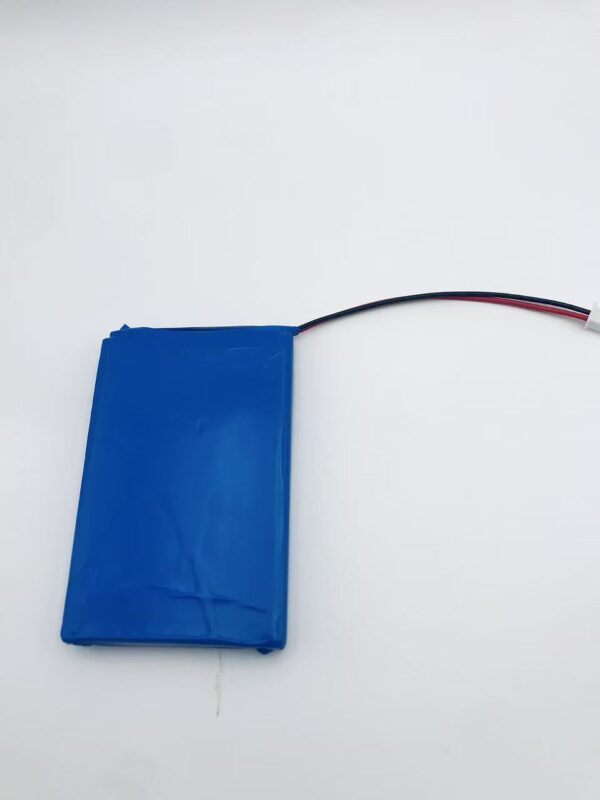

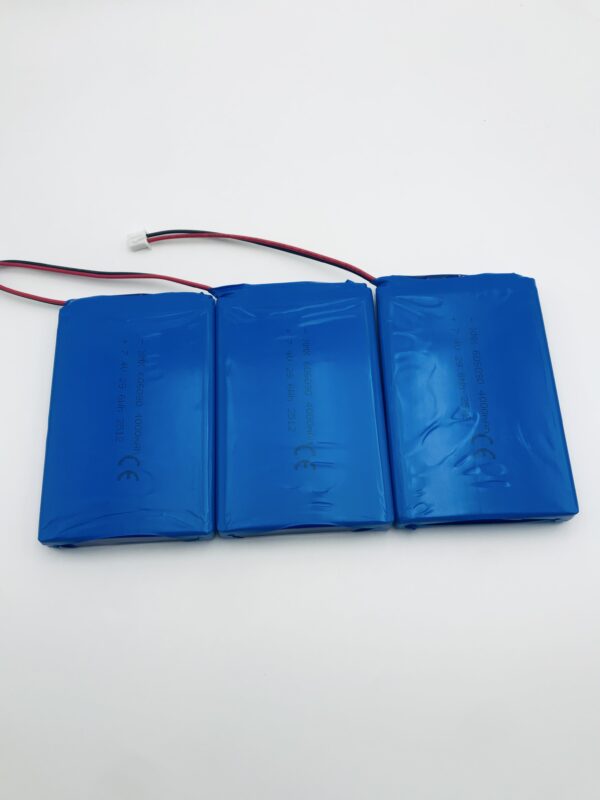

The 606090 7.4V 4000mAh 2S LiPo Battery Pack is a high-voltage, high-capacity rechargeable lithium polymer battery pack built for demanding portable applications. By connecting two 3.7V/2000mAh cells in series (2S configuration), it delivers a stable 7.4V nominal output with 29.6Wh energy — making it an ideal power source for GPS tracking systems, portable power banks, handheld industrial terminals, RC equipment, and field communication devices.

Every pack is assembled with matched-capacity cells, precision spot-welded connections, and integrated PCM protection to ensure consistent performance, long service life, and safe operation across the full charge/discharge cycle.

Key Features

• ✅ 7.4V 2S Configuration – Series-connected dual-cell design for devices requiring higher voltage rails
• ✅ 4000mAh / 29.6Wh High Capacity – Extended runtime for power-intensive field and portable applications
• ✅ Matched Cell Assembly – Cells sorted by capacity and internal resistance for balanced charge/discharge
• ✅ Integrated PCM Protection – Overcharge, over-discharge, overcurrent, short-circuit & cell balancing protection
• ✅ Stable Discharge Curve – Consistent voltage output from full charge to cut-off
• ✅ 500+ Cycle Life – ≥80% capacity retention after 500 full charge/discharge cycles
• ✅ Low Self-Discharge – ≤3% per month, ideal for GPS trackers and standby-mode devices
• ✅ CE & UN38.3 Certified – Air freight compliant, meets EU and global market requirements
• ✅ OEM/ODM Ready – Custom voltage, capacity, form factor, connector & labeling available

Specifications

Applications

Battery Pack Structure

┌─────────────────────────────────────────┐
│  Cell 1 (3.7V / 2000mAh)  │  606090    │
│  Cell 2 (3.7V / 2000mAh)  │  606090    │
│         Connected in Series (2S)        │
│    Output: 7.4V Nominal / 8.4V Full    │
│         Integrated PCM Protection       │
│      Custom Connector & Wire Leads      │
└─────────────────────────────────────────┘

Quality Assurance

Every battery pack undergoes a full multi-stage QC inspection before shipment:

OEM & Custom Battery Pack Solutions

We design and manufacture custom battery packs for device makers, integrators, and brand owners:

• Voltage Configuration – 3.7V (1S) / 7.4V (2S) / 11.1V (3S) / 14.8V (4S) and beyond
• Capacity Range – 2000mAh ~ 10,000mAh for 606090-based packs
• Cell Arrangement – Series (S), parallel (P), or series-parallel (SP) combinations
• Connector Options – JST-XH 2.54, XT30, XT60, DC barrel, Molex, bare leads, custom harness
• BMS Features – Cell balancing, fuel gauge IC (TI BQ series), NTC thermistor, LED indicators
• Form Factor – Hard case, soft pouch, custom molded housing
• Branding – Private label, logo printing, custom shrink wrap, retail packaging
• MOQ – 100 pcs standard configurations ｜ 300 pcs full OEM custom packs

Packaging & Shipping

Why Choose Us

• 🏭 12+ years manufacturing lithium polymer cells and custom battery packs
• 🔬 In-house R&D lab with automated cell formation, grading & pack assembly lines
• 📋 ISO 9001 certified — end-to-end quality control from raw cell to finished pack
• ✈️ UN38.3 certified — DHL / FedEx / UPS air express shipping to 200+ countries
• 🌍 Supplying 1,000+ customers across EU, North America, Southeast Asia & Middle East
• 📐 Free engineering consultation for custom pack design, BMS integration & compliance
• 💬 Dedicated account manager — response within 4 business hours

💬 Tell us your device voltage requirement, runtime target, or physical space constraints — our battery pack engineers will design and quote a tailored solution within 24 hours.
