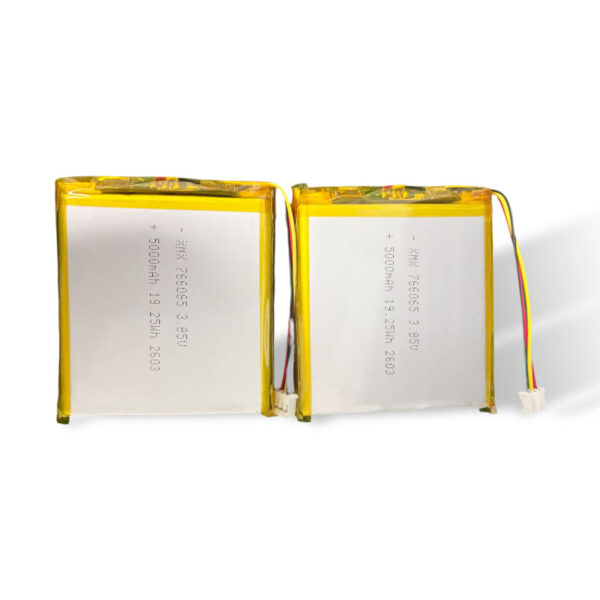

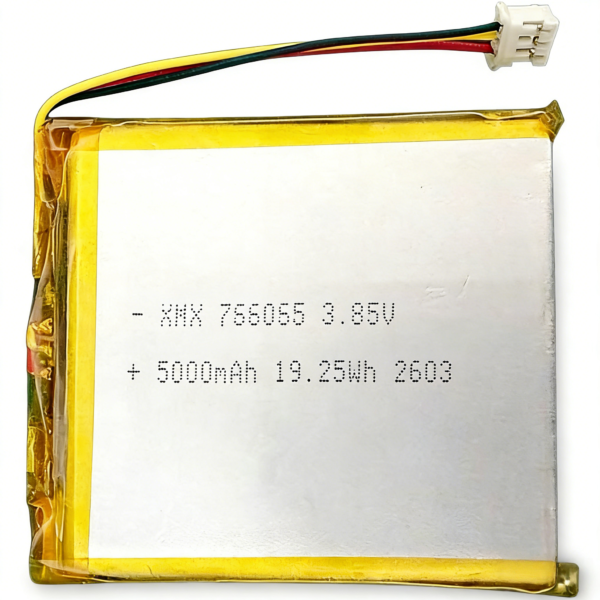

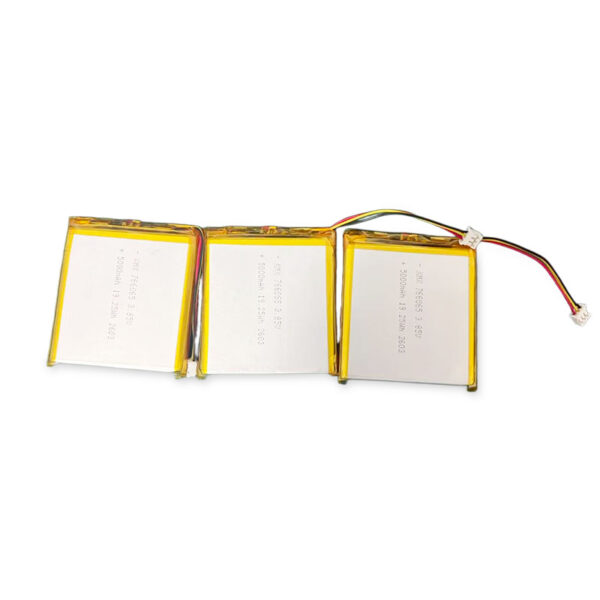

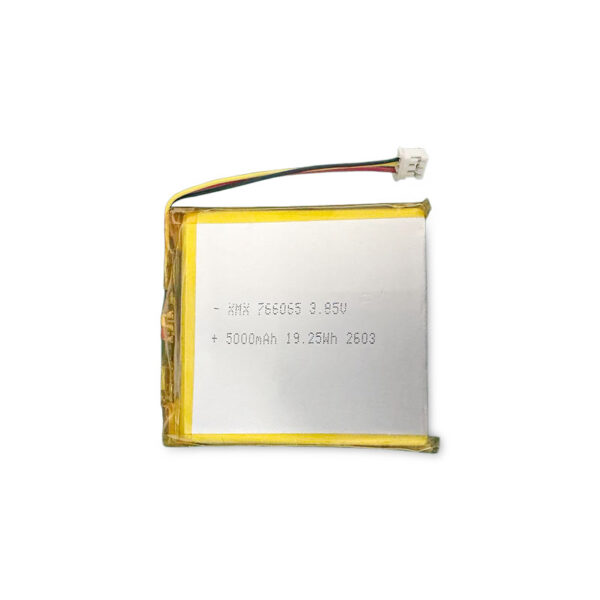

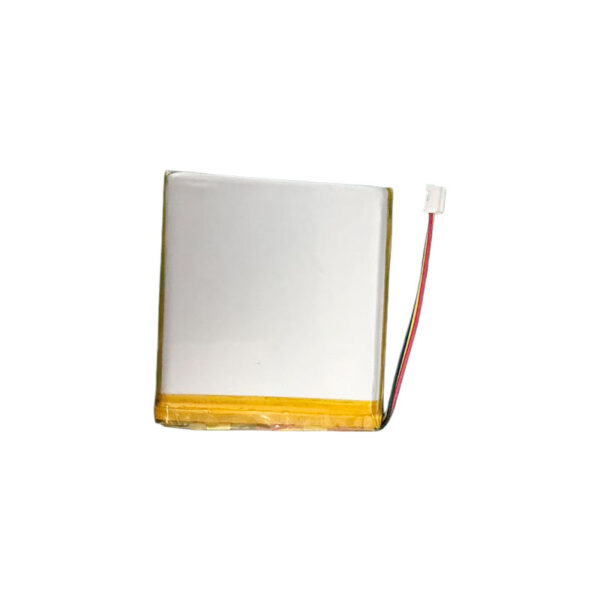

766065 3.85V 5000mAh LiPo Battery
$2.88
766065 3.85V 5000mAh lithium polymer battery, premium high-voltage 60x65mm cell for flagship tablets, smartphones and power banks. CE/RoHS/UN38.3 certified.
The HNF-766065 is a 7.6mm-thin high-voltage lithium polymer battery delivering 5000mAh at 3.85V across a spacious 60 x 65mm area. With 19.25Wh of energy and a premium 3.85V chemistry platform, it provides higher energy density than standard 3.7V cells — making it the battery of choice for premium tablets, high-end smartphones, flagship portable power banks, and advanced portable medical devices where every Wh matters.
Model number: HNF-766065 5000mAh 3.85V
Nominal voltage: 3.85 V
Nominal capacity: 5000 mAh
Dimension: 7.6 x 60 x 65 mm
Cell configuration: 1S1P
Certification: CE / RoHS / IEC62133 / UN38.3 / MSDS
Warranty: 12 months
Specifications
| Item | Rating | Remark |
|---|---|---|
| Model | HNF-766065 5000mAh 3.85V | |
| Nominal Capacity | 5000 mAh | Standard discharge (0.2C5A) after standard charge |
| Nominal Voltage | 3.85 V | |
| Dimension | 7.6 x 60 x 65 mm | |
| Weight | Approx: 95 g | |
| Cut-off Charge Voltage | 4.35 V | |
| Cut-off Discharge Voltage | 3.0 V | |
| Standard Charge | 0.2C CC charge to CV then CV till current ≤0.01C | Charge time: approx. 7.0 h |
| Max. Constant Charging Current | 2500 mA (0.5C) | |
| Standard Discharge | Discharge at 0.2C5A to cut-off voltage | |
| Max. Continuous Discharging Current | 5000 mA (1.0C) | |
| Cycle Life | ≥500 cycles, 80% capacity retention | |
| Operating Temperature | Charge 0~+45℃ / Discharge -20~+60℃ | |
| Storage Temperature | -10~+45℃ | |
| Storage Humidity | 45-75% RH |
Application Field
Premium tablets and high-end smartphones, flagship portable power banks, advanced portable medical devices, high-end portable speakers, professional field equipment.
Main Advantages
- High energy density, stable 3.85V nominal voltage
- High-drain capable, stable discharge performance
- Lightweight and ultra-thin; dimensions customizable on request
- Extremely safe, low self-discharge, long cycle life (≥500 cycles, 80% capacity retention)
- Reliable PCM protection against over-charge and over-discharge
- Wide operating temperature: -20℃ ~ +60℃
FAQ
Q: Do you accept customization?
A: Yes. We are a professional custom lithium battery manufacturer. Share your required voltage, capacity, and dimensions.
Q: Can this be shipped by air?
A: 19.2 Wh — well within the 100Wh limit, suitable for air freight with MSDS & UN38.3 documentation.
Q: Do you offer samples?
A: Samples are available; sample cost is refunded once a bulk order is confirmed.
Q: What is the MOQ?
A: In-stock items have no MOQ. For customized cells, MOQ is typically 3,000-10,000 pcs depending on size and capacity.
Q: How is quality assured?
A: Multi-stage quality control across R&D, incoming inspection, production, pre-shipment, and after-sales, fully certified with CE, RoHS, and IEC62133.
