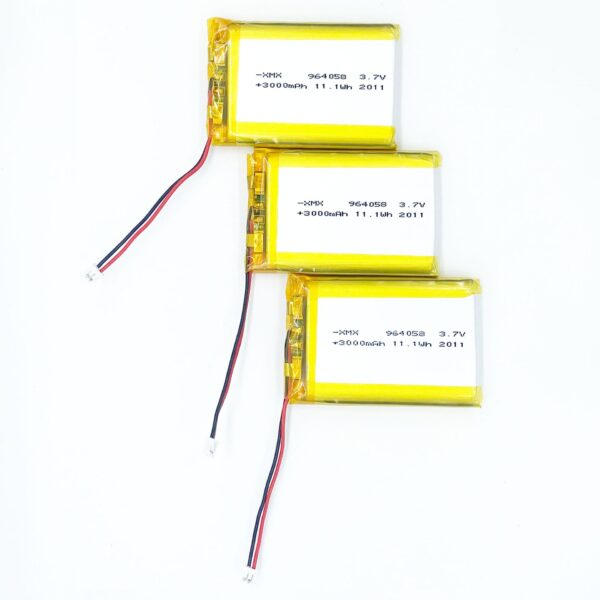

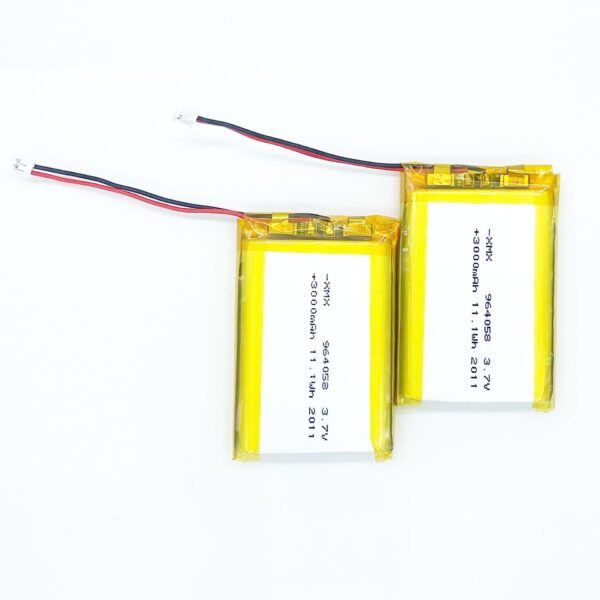

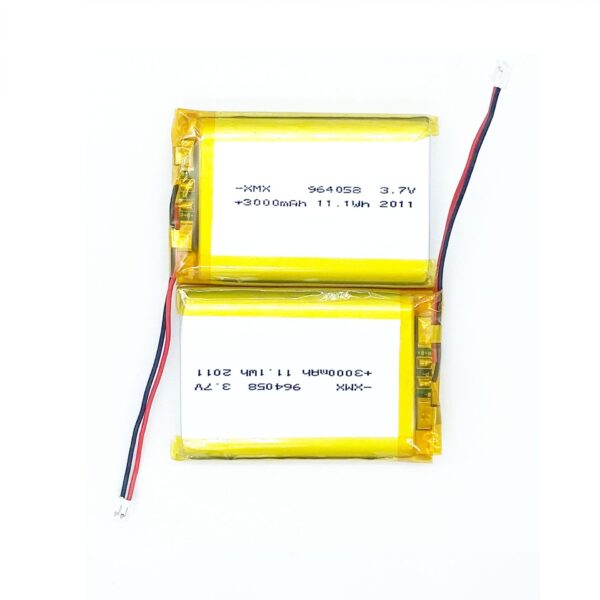

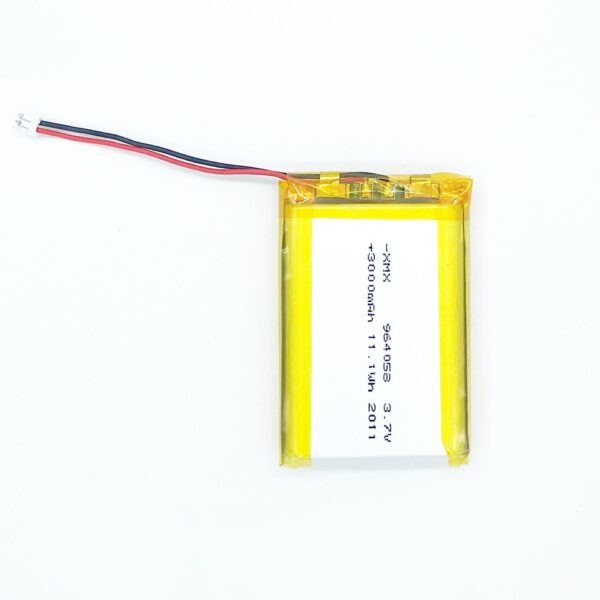

964058 3.7V 3000mAh LiPo Battery
$2.80
Model 964058 3.7V 3000mAhlithium polymer battery. High energy density with built-in BMS protection. Ideal for portable electronics, wearables and IoT devices. Custom sizes available. HNF Battery manufacturer.
🔋 964058 LiPo Battery — 3.7V 3000mAh Rechargeable Lithium Polymer Battery for Medical & Portable Devices
Overview
The 964058 lithium polymer battery delivers a robust 3.7V / 3000mAh (11.1Wh) in a flat 9.6 × 40 × 58mm form factor. Combining high energy density with stable discharge characteristics and a wide operating temperature range, it is specifically suited for medical wearables, portable patient monitors, handheld diagnostic equipment, and smart consumer devices where reliability, safety, and compact form are non-negotiable. CE and UN38.3 certified as standard, with full batch traceability and ISO 13485 documentation available for medical qualification projects.
Key Specifications
| Parameter | Specification |
|---|---|
| Model | 964058 |
| Configuration | 1S1P |
| Nominal Voltage | 3.7V |
| Capacity | 3000mAh |
| Energy | 11.1Wh |
| Dimensions | 9.6 × 40 × 58 mm |
| Weight | ≈ 57g |
| Charge Voltage | 4.2V |
| Max Charge Current | 1.5A (0.5C) |
| Recommended Charge | 0.5C CC/CV |
| Continuous Discharge | 3A (1C) |
| Peak Discharge | 6A (2C) |
| Discharge Cut-off | 3.0V |
| Self-discharge Rate | ≤ 2% / month |
| Cycle Life | ≥ 500 cycles |
| Capacity Retention | ≥ 80% after 500 cycles |
| Operating Temp | -20°C ~ 60°C |
| Storage Temp | -10°C ~ 45°C |
| Wire Leads | 150mm AWG24 (customizable) |
| Connector | JST-PH 2Pin (customizable) |
| Certification | CE / UN38.3 / RoHS |
964058 vs Similar 3000mAh Models
| Model | Voltage | Capacity | Dimensions (mm) | Weight | Profile | Best For |
|---|---|---|---|---|---|---|
| 805060 | 3.7V | 3000mAh | 8.0×50×60 | ≈58g | Wide & thin | Smart home, POS |
| 902990 | 3.7V | 3000mAh | 9.0×29×90 | ≈58g | Long & narrow | Speakers, readers |
| 964058 ⭐ | 3.7V | 3000mAh | 9.6×40×58 | ≈57g | Balanced square | Medical, monitors |
| 1053450 | 3.7V | 2500mAh | 10.5×34×50 | ≈50g | Thick & compact | Industrial handhelds |
| 806080 | 3.7V | 3500mAh | 8.0×60×80 | ≈68g | Large flat | Large tablets |
📌 964058 unique advantage: The balanced 40×58mm footprint and 9.6mm thickness makes it compatible with a wider range of medical device housings than longer narrow cells — ideal for portable monitors, AED devices, and handheld diagnostics.
Features
- ✅ Medical-grade reliability — stable discharge across full temperature range, low self-discharge ≤2%/month
- ✅ Balanced square form factor — 9.6×40×58mm fits broad range of medical & consumer enclosures
- ✅ 3000mAh high capacity — extended runtime for always-on monitoring devices
- ✅ Integrated PCM protection — overcharge, over-discharge, overcurrent & short-circuit
- ✅ ≥80% capacity retention at 500 cycles — long service life for regulated medical equipment
- ✅ Low self-discharge ≤2%/month — superior to standard LiPo, critical for standby medical devices
- ✅ Stable flat discharge curve — consistent voltage output vital for medical sensor accuracy
- ✅ CE & UN38.3 certified — EU market ready & globally freight compliant
- ✅ Full OEM/ODM support — custom dimensions, connector, wire harness & branding
Applications
| Industry | Typical Devices |
|---|---|
| 🏥 Medical — Primary | Portable patient monitors, pulse oximeters, ECG devices |
| 🏥 Medical — Secondary | AED defibrillators, infusion pumps, handheld ultrasound |
| 🩺 Healthcare Wearables | Continuous glucose monitors, wearable ECG patches, smart prosthetics |
| 🖥️ Consumer Electronics | Tablets, portable monitors, e-readers |
| 🏪 Retail & POS | Mid-size POS terminals, handheld inventory scanners |
| 🏭 Industrial | Rugged field tablets, mobile inspection devices |
| 💡 Backup Power | Portable UPS modules, emergency lighting units |
Medical Application — Why 964058 Qualifies
| Requirement | 964058 Performance |
|---|---|
| Low self-discharge | ✅ ≤2%/month — device ready after long storage |
| Wide temp range | ✅ -20°C ~ 60°C — stable in clinical & field environments |
| Stable discharge | ✅ Flat curve — no voltage sag affecting sensor readings |
| Cycle life | ✅ ≥500 cycles / ≥80% retention — meets IEC 62133 guideline |
| Safety protection | ✅ Full PCM — OCP / OVP / UVP / SCP |
| Certification | ✅ CE / UN38.3 / RoHS standard |
| Traceability | ✅ Full batch records available on request |
| ISO 13485 support | 📋 Available on request for medical device qualification |
PCM Protection Details
| Protection | Trigger Threshold | Function |
|---|---|---|
| ⚡ Overcharge | Cutoff at 4.25V | Prevents thermal runaway |
| 🔋 Over-discharge | Cutoff at 2.75V | Preserves cycle life & capacity |
| 🔥 Overcurrent | Trips at >6A | Prevents circuit & device damage |
| ⚠️ Short-circuit | Instant cutoff | Critical safety for medical environments |
| 🌡️ Thermal stability | -20°C ~ 60°C | Reliable in clinical & outdoor field use |
Default Package Configuration
| Item | Specification |
|---|---|
| LiPo cell | 964058 3.7V 3000mAh |
| PCM protection board | ✅ Included |
| Wire leads | 150mm AWG24 red & black |
| Connector | JST-PH 2Pin |
| Self-discharge | ≤2%/month |
| Label | Standard / OEM white-label available |
| Stock status | ✅ In stock — ships within 3 business days |
OEM / Custom Options
| Option | Details |
|---|---|
| Voltage | 3.7V / 3.85V HV / 7.4V / 11.1V |
| Capacity | 1500mAh – 5000mAh (this profile) |
| Dimensions | Custom to your enclosure drawing |
| Wire length & gauge | 50mm ~ 300mm / AWG20 ~ AWG28 |
| Connector | JST-PH / SH / ZH / Molex / Bare wire |
| Protection | Standard PCM / Smart BMS / Fuel gauge IC |
| QC documentation | 100% test report, batch traceability records |
| Certification | CE, UN38.3, RoHS, UL, IEC 62133, ISO 13485 on request |
| Branding | OEM / white-label labeling & retail packaging |
| MOQ | 50 pcs |
Certification & Compliance
| Certificate | Scope | Status |
|---|---|---|
| ✅ CE | EU market compliance | Standard |
| ✅ UN38.3 | Global air & sea freight | Standard |
| ✅ RoHS | Hazardous substance compliance | Standard |
| ✅ MSDS | Material safety data sheet | Standard |
| 📋 IEC 62133 | Portable battery safety standard | On request |
| 📋 ISO 13485 | Medical device quality management | On request |
| 📋 UL 2054 | US household battery standard | On request |
| 📋 KC | Korea market | On request |
Why Choose Us?
- 🏭 Factory Direct — own production lines, zero intermediaries
- 🏥 Medical-grade QC — 100% capacity & PCM tested, full batch traceability
- 📋 CE + UN38.3 standard — documentation ready for customs & medical compliance
- 🔬 IEC 62133 / ISO 13485 support — full qualification support for medical device projects
- 📐 Balanced form factor expertise — square-profile cells for medical housing constraints
- ⚡ In stock — standard models dispatched within 3 business days
- 🔧 7-day OEM sample — rapid custom prototyping for new medical & consumer projects
- 🚢 DG shipping expertise — lithium battery logistics worldwide
📩 Medical project? Send us your device spec — we provide full qualification documentation, traceability records & custom engineering support within 24 hours.
