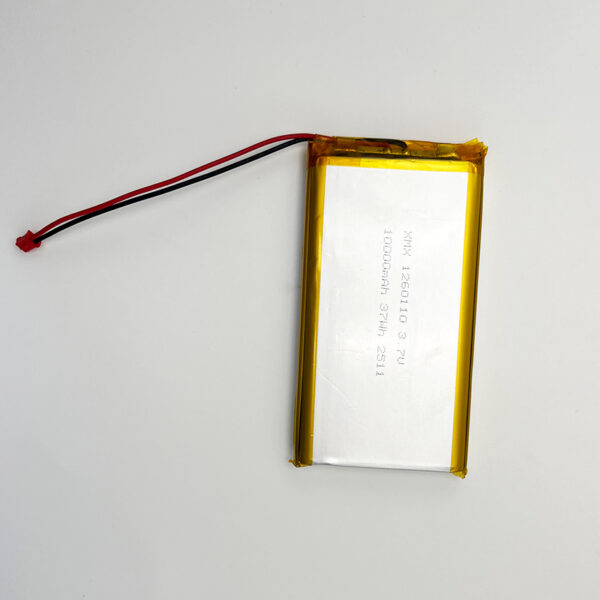

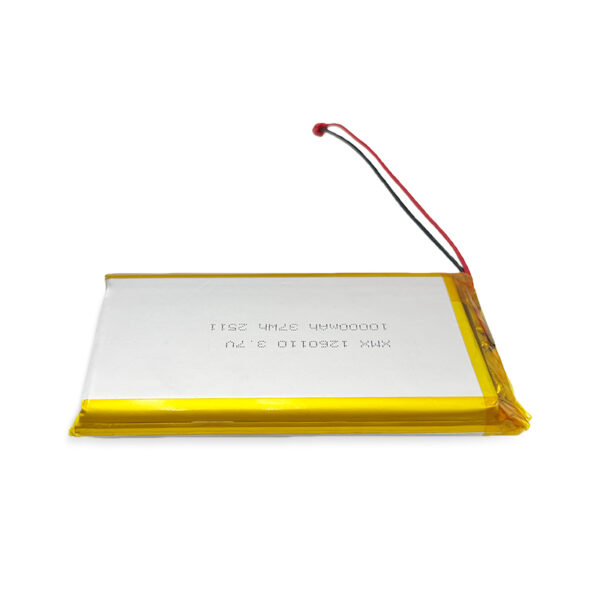

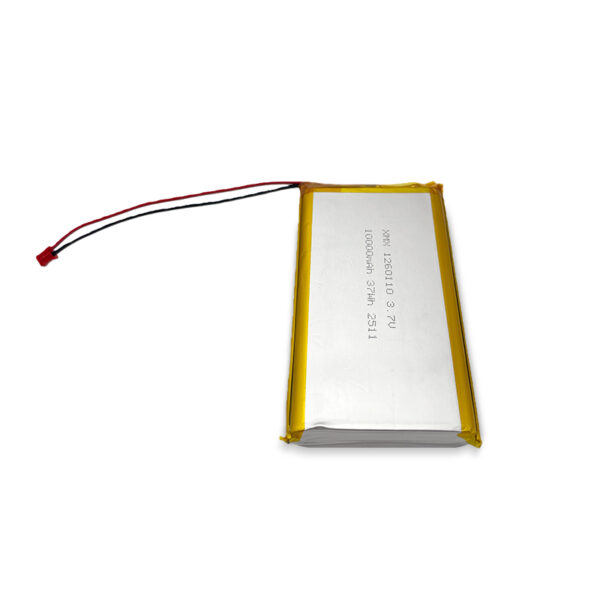

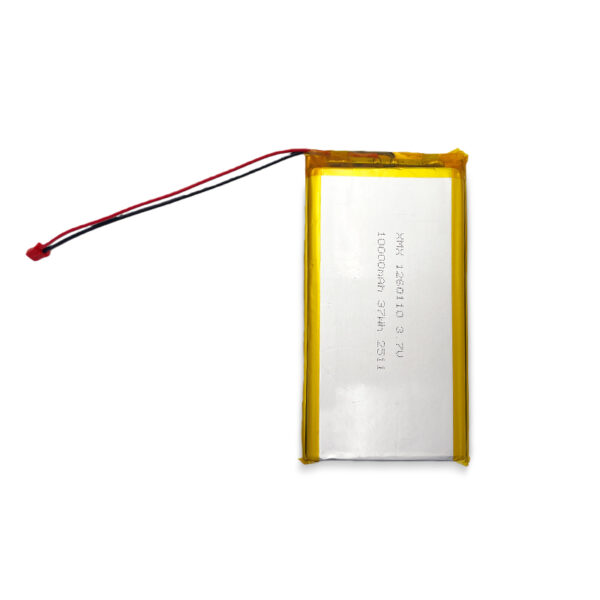

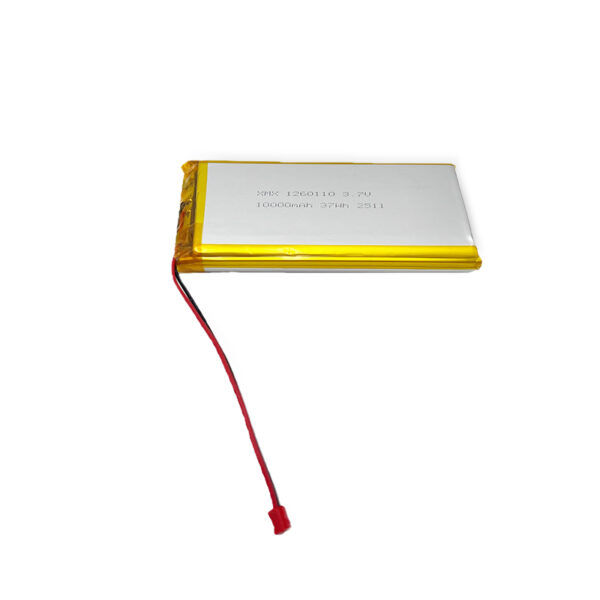

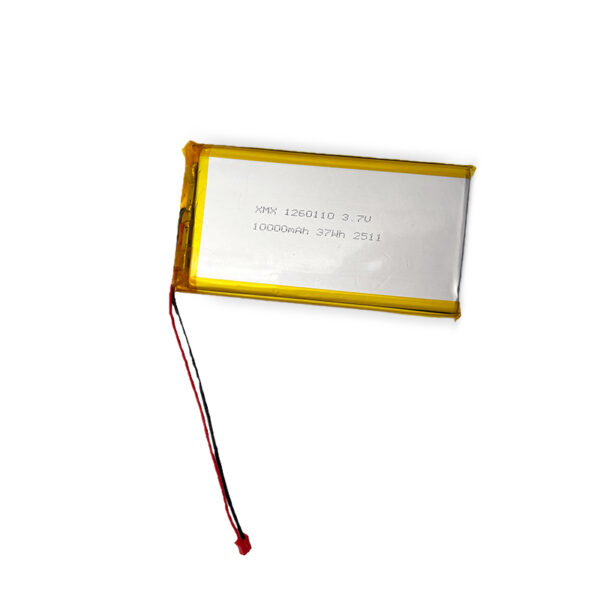

1260110 3.7V 10000mAh LiPo Battery
$8.50
Model 1260110 3.7V 10000mAhlithium polymer battery. High energy density with built-in BMS protection. Ideal for electric vehicles and energy storage systems. Custom sizes available. HNF Battery manufacturer.
🔋 LP1260110 LiPo Battery — 3.7V 10000mAh 37Wh High Capacity Rechargeable Lithium Polymer Battery
Overview
The LP1260110 lithium polymer battery delivers a true-rated 3.7V / 10000mAh (37Wh) in a flat single-cell format measuring 12.0 × 60 × 110mm. Designed for high-capacity portable applications, it is the preferred power solution for power banks, portable monitors, digital signage panels, large-format tablets, and smart consumer devices requiring maximum single-cell energy in a manageable form factor. Every unit undergoes 100% capacity verification before shipment. CE and UN38.3 certified, air-freight eligible, in stock for immediate dispatch.
Key Specifications
| Parameter | Specification |
|---|---|
| Model | LP1260110 |
| Configuration | 1S1P |
| Nominal Voltage | 3.7V |
| Capacity | 10000mAh |
| Energy | 37Wh |
| Dimensions | 12.0 × 60 × 110 mm |
| Weight | ≈ 210g |
| Charge Voltage | 4.2V |
| Recommended Charge | 0.5C = 5A CC/CV |
| Max Charge Current | 10A (1C) |
| Continuous Discharge | 10A (1C) |
| Peak Discharge | 20A (2C) |
| Discharge Cut-off | 3.0V |
| Self-discharge Rate | ≤ 3% / month |
| Cycle Life | ≥ 500 cycles |
| Capacity Retention | ≥ 80% after 500 cycles |
| Operating Temp | -20°C ~ 60°C |
| Storage Temp | -10°C ~ 45°C |
| Wire Leads | 150mm AWG22 (customizable) |
| Connector | JST-PH 2Pin / XT30 (customizable) |
| Certification | CE / UN38.3 / RoHS |
⚠️ Voltage Compatibility Notice
| Device Type | Required Voltage | Compatible with LP1260110 |
|---|---|---|
| Power banks | 3.7V cell input | ✅ Direct fit |
| Tablets & displays | 3.7V ~ 4.2V | ✅ Direct fit |
| Smart speakers / hubs | 3.7V | ✅ Direct fit |
| Laptops | 10.8V ~ 14.4V (3S~4S) | ❌ Requires multi-cell pack |
| Power tools | 18V ~ 21V | ❌ Requires multi-cell pack |
📌 This is a single-cell 3.7V LiPo. For laptop or high-voltage applications, please enquire about our 3S (11.1V) or 4S (14.8V) custom battery pack solutions.
LP1260110 vs Large-Format LiPo Series
| Model | Voltage | Capacity | Dimensions (mm) | Energy | Best For |
|---|---|---|---|---|---|
| 906090 | 3.7V | 6000mAh | 9.0×60×90 | 22.2Wh | Tablets, smart speakers |
| 1057100 | 3.7V | 8000mAh | 10.0×57×100 | 29.6Wh | Large displays |
| LP1260110 ⭐ | 3.7V | 10000mAh | 12.0×60×110 | 37Wh | Power banks, signage |
| 1565130 | 3.7V | 12000mAh | 15.0×65×130 | 44.4Wh | Industrial power packs |
| 3S custom | 11.1V | 10000mAh | custom | 111Wh | Laptops, industrial |
Features
- ✅ True-rated 10000mAh — 100% capacity verified, no virtual or exaggerated specs
- ✅ 37Wh high energy — maximum single-cell runtime for large portable devices
- ✅ Air-freight eligible — 37Wh well below IATA 160Wh Section II threshold
- ✅ 12mm slim profile — integrates into standard power bank & display chassis
- ✅ Integrated PCM protection — overcharge, over-discharge, overcurrent & short-circuit
- ✅ High discharge 10A continuous / 20A peak — supports multi-port fast charging designs
- ✅ Low self-discharge ≤3%/month — retains charge during storage & standby
- ✅ Stable flat discharge curve — consistent 3.7V throughout full 10Ah range
- ✅ ≥500 cycles / ≥80% retention — 3+ years of daily charge reliability
- ✅ CE & UN38.3 certified — EU compliant, global freight documentation ready
- ✅ Full OEM/ODM support — custom dimensions, connector, wire harness & branding
Applications
| Industry | Typical Devices |
|---|---|
| 🔋 Portable Power | Power banks, portable energy stations, emergency backup packs |
| 🖥️ Consumer Electronics | Large tablets, 12″+ portable monitors, e-readers |
| 📺 Digital Signage | Retail display panels, digital menu boards, advertising screens |
| 🔊 Smart Home & Audio | Large smart speakers, home display hubs, voice assistants |
| 🏪 Retail & Payments | Large-screen POS terminals, self-service kiosks |
| 🏥 Medical | Mobile patient carts, bedside monitors, portable imaging |
| 🏭 Industrial | Rugged mobile workstations, field data terminals |
| 💡 Energy Backup | Solar storage lights, off-grid IoT hubs, mini UPS |
Power Bank Performance Reference
| Charging Scenario | Output Power | Est. Device Charges |
|---|---|---|
| Standard USB 5V 2A | 10W | ≈ 2.2× smartphone (15Wh) |
| Quick Charge 9V 2A | 18W | ≈ 1.8× flagship phone (17Wh) |
| USB-C PD 20W | 20W | ≈ 1.3× iPad mini (25Wh) |
| Dual port 5V 2A×2 | 20W | ≈ 3+ smaller device charges |
📌 Based on 37Wh at 85% conversion efficiency. Actual output depends on power bank circuit design.
PCM Protection Details
| Protection | Trigger Threshold | Function |
|---|---|---|
| ⚡ Overcharge | Cutoff at 4.25V | Prevents swelling & thermal runaway |
| 🔋 Over-discharge | Cutoff at 2.75V | Preserves long-term cycle life |
| 🔥 Overcurrent | Trips at >20A | Protects high-current power bank circuits |
| ⚠️ Short-circuit | Instant cutoff | Critical safety for consumer products |
| 🌡️ Thermal range | -20°C ~ 60°C | Reliable across indoor & outdoor environments |
Shipping & Air Freight Compliance
| Parameter | Detail |
|---|---|
| Energy content | 37Wh |
| IATA Section II threshold | 160Wh per cell |
| Air freight status | ✅ Eligible — well below limit |
| UN38.3 certified | ✅ DG documentation included |
| Packaging compliance | Per IATA PI 965 Section II |
| Sea freight | ✅ No restrictions at this energy level |
✈️ Logistics advantage: At 37Wh, LP1260110 qualifies as IATA Section II — the simplest, lowest-cost category for lithium battery air freight, with no quantity limits per package.
Default Package Configuration
| Item | Specification |
|---|---|
| LiPo cell | LP1260110 3.7V 10000mAh |
| PCM protection board | ✅ Included |
| Capacity verification | ✅ 100% tested before shipment |
| Wire leads | 150mm AWG22 red & black |
| Connector | JST-PH 2Pin (XT30 optional) |
| Label | Standard / OEM white-label available |
| Stock status | ✅ In stock — ships within 3 business days |
OEM / Custom Options
| Option | Details |
|---|---|
| Voltage | 3.7V / 3.85V HV / 7.4V (2S) / 11.1V (3S) / 14.8V (4S) |
| Capacity | 6000mAh – 20000mAh |
| Dimensions | Custom to your enclosure drawing |
| Wire length & gauge | 100mm ~ 300mm / AWG18 ~ AWG24 |
| Connector | JST-PH / XT30 / XT60 / Anderson / bare wire |
| Protection | Standard PCM / Smart BMS / Fuel gauge IC |
| Certification | CE, UN38.3, RoHS, UL, IEC 62133 on request |
| Branding | OEM / white-label labeling & retail packaging |
| MOQ | 30 pcs |
💻 Need laptop voltage (10.8V~14.8V)? We manufacture custom 3S 11.1V and 4S 14.8V LiPo packs up to 15000mAh — contact us with your spec.
Certification & Compliance
| Certificate | Scope | Status |
|---|---|---|
| ✅ CE | EU market compliance | Standard |
| ✅ UN38.3 | Global air & sea freight | Standard |
| ✅ RoHS | Hazardous substance compliance | Standard |
| ✅ MSDS | Material safety data sheet | Standard |
| 📋 UL 2054 | US market battery standard | On request |
| 📋 IEC 62133 | Portable battery safety | On request |
| 📋 KC | Korea market | On request |
| 📋 BIS | India market | On request |
Why Choose Us?
- 🏭 Factory Direct — own production lines, zero intermediaries, guaranteed best pricing
- 🔋 True-rated 10000mAh — every unit 100% capacity tested, certified real specs
- ✈️ Air-freight friendly — 37Wh IATA Section II, lowest DG shipping cost & complexity
- 📐 Large-format LiPo specialist — 10Ah+ single-cell engineering is our core strength
- 📋 CE + UN38.3 standard — full DG documentation for compliance procurement
- 🔬 7-day OEM sample — rapid large-cell custom prototyping
- 💻 Multi-cell upgrade path — 3S/4S laptop-voltage packs available from same factory
- 🚢 DG logistics expertise — worldwide shipping via air, sea & express courier
📩 Contact us for samples, true-capacity verification reports, bulk pricing, or custom high-capacity LiPo solutions.
