601230 3.7V 200mAh LiPo Battery: The Slim 6×12×30mm Strip Cell for Wearable Bands & Smart Rings
The 601230 3.7V 200mAh LiPo battery is a slim 6x12x30mm narrow strip lithium polymer cell (~4g) for wearable fitness bands, smart jewelry, hearing aids and smart rings. Specs, applications & OEM options.
When a device wraps around a wrist or a finger, a square battery simply will not do. The 601230 3.7V 200mAh LiPo battery is a slim narrow strip lithium polymer cell measuring just 6.0 × 12 × 30 mm and weighing about 4g. Its long, thin footprint follows the curve of a band or ring, making it the natural cell for wearable fitness bands, smart jewelry, mini hearing aids, and smart rings where width must be minimized.
This guide covers the HNF-601230 cell’s specification, its strip form factor, and the wearable applications where a narrow LiPo fits where a block cannot.
Why the 601230 Format: A Narrow 6×12×30mm Strip

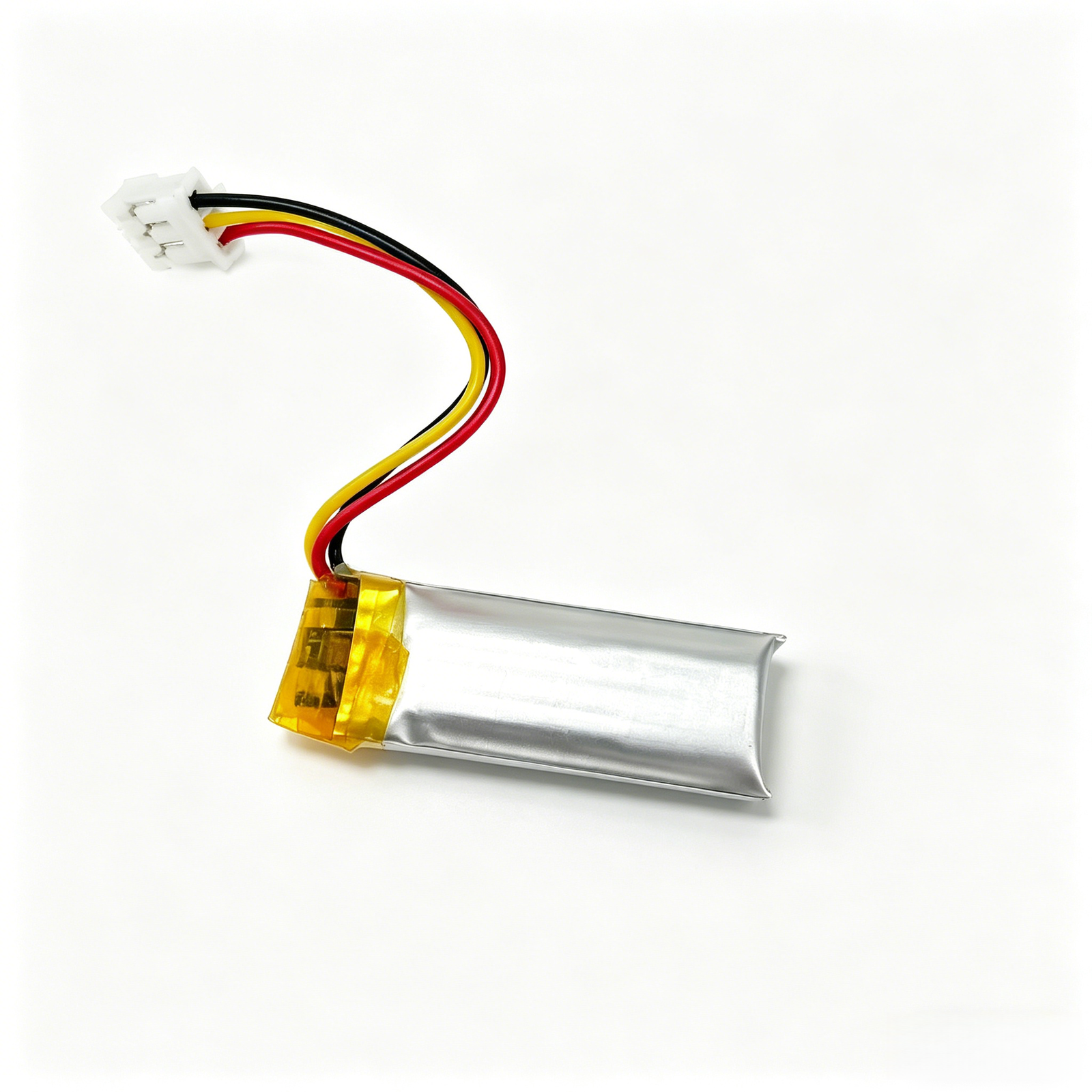

The model number encodes the geometry. The 601230 LiPo measures:
- 6.0 = 6.0mm thickness
- 12 = 12mm width
- 30 = 30mm length
- 200 = 200mAh capacity
The result is a 1S1P (single cell, single parallel) lithium polymer battery with a footprint of 6.0 × 12 × 30 mm and a weight of approximately 4g. Unlike a compact block cell, the 601230’s narrow 12mm width and 30mm length let it lie flat along a strap or ring band — the right shape for wearable form factors.
HNF-601230 3.7V 200mAh: Complete Specifications
The HNF-601230 is a 1S1P lithium polymer cell with a PCM (Protection Circuit Module). Full ratings:
- Model: HNF-601230 200mAh 3.7V
- Nominal capacity: 200 mAh (standard discharge 0.2C after standard charge)
- Nominal voltage: 3.7 V
- Dimensions: 6.0 × 12 × 30 mm
- Weight: Approx. 4 g
- Configuration: 1S1P
- Energy: 0.74 Wh
- Cut-off charge voltage: 4.2 V
- Cut-off discharge voltage: 3.0 V
- Standard charge: 0.2C CC-CV, approx. 7.0 h
- Cycle life: ≥ 500 cycles at 80% capacity retention
- Operating temperature: Charge 0~+45°C / Discharge -20~+60°C
- Storage temperature: -10~+45°C
- Certifications: CE / RoHS / IEC62133 / UN38.3 / MSDS
- Warranty: 12 months
Key Advantages of the 601230 LiPo Strip Cell
- Narrow strip form factor — 12mm wide, 30mm long, follows the curve of bands and rings.
- Stable 3.7V output — predictable voltage for low-power sensors and Bluetooth.
- Ultra-light at ~4g — adds no noticeable mass to a worn device.
- Ultra-low self-discharge — holds charge through long storage and shipping.
- Safe and long-lived — PCM protection plus ≥500 cycles at 80% retention.
- Air-shipment friendly — at 0.74Wh it is exempt from most battery shipping rules.
- Customizable — HNF manufactures pouch cells to customer-specified dimensions and capacities.
Where the 601230 3.7V LiPo Is Used
The narrow strip footprint targets wearables where a long, thin cell wraps with the body:
1. Wearable Fitness Bands & Smart Jewelry
A 12mm-wide strip lies flat inside a wristband or bracelet. The 601230 powers heart-rate, step counting, and display without bulging the strap.
2. Mini Hearing Aids & Assistive Devices
Behind-the-ear and in-canal aids need the slimmest possible cell. The 6mm thickness and narrow width fit the tightest enclosures.
3. Micro Medical Sensor Patches
Skin-worn patches and continuous-glucose monitors run for days on a 200mAh strip. The cell’s CE/RoHS/IEC62133 compliance suits clinical wearables.
4. Compact Smart Rings
Smart rings wrap a thin cell around the finger. The 601230’s strip shape curves with the band and keeps the ring comfortable.
5. Mini Bluetooth Tracking Tags
Slim tags and key finders draw tiny standby current. A 200mAh LiPo lasts many months between charges in low-duty-cycle use.
Safety, Certification & Shipping
At just 0.74Wh the HNF-601230 is far below the 100Wh air-freight limit and exempt from most lithium-battery shipping restrictions — it ships by air with standard MSDS and UN38.3 documentation. Every cell is built to CE, RoHS, and IEC62133 standards and protected by an onboard PCM against over-charge, over-discharge, and short circuit. HNF applies multi-stage quality control across R&D, incoming inspection, production, pre-shipment, and after-sales.
Customization & OEM Options
The 601230 is a standard catalog cell, but HNF Battery is a custom lithium battery manufacturer. Share your required voltage, capacity, and dimensions and the engineering team will propose a pouch cell, protection circuit, and connector configuration to match — including strip, curved, or odd-shape pouches for wearables that must follow the body. In-stock items ship with no MOQ; custom cells typically start at 3,000–10,000 pcs depending on size and capacity. Samples are available and the sample cost is refunded once a bulk order is confirmed.
Frequently Asked Questions
Q: Can the 601230 be shipped by air?
A: Yes. At 0.74Wh it is exempt from most restrictions and ships with MSDS & UN38.3 documentation.
Q: Why a strip shape instead of a block?
A: The narrow 12×30mm footprint lies flat along a wristband or ring, where a square cell would not fit the curve.
Q: What is the minimum order quantity?
A: In-stock cells have no MOQ. Custom pouch cells typically start at 3,000–10,000 pcs.
Q: Can you customize the size?
A: Yes — HNF manufactures LiPo cells to customer-specified dimensions and capacities.
Q: Is the cell protected?
A: Yes, every HNF-601230 includes a PCM for over-charge, over-discharge, and short-circuit protection.
