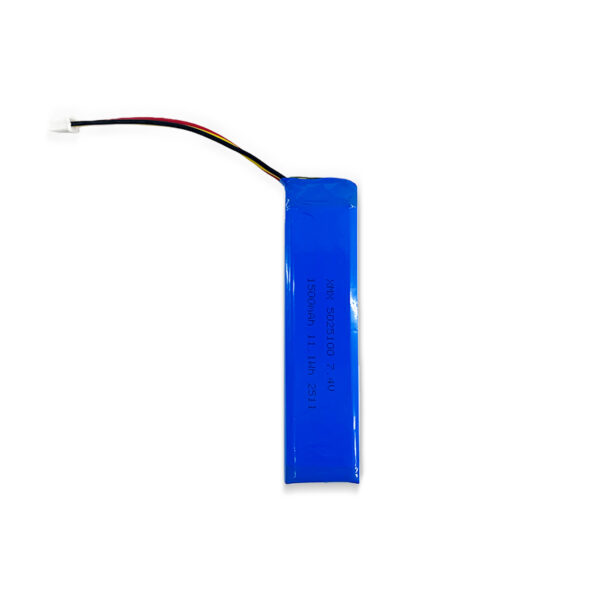

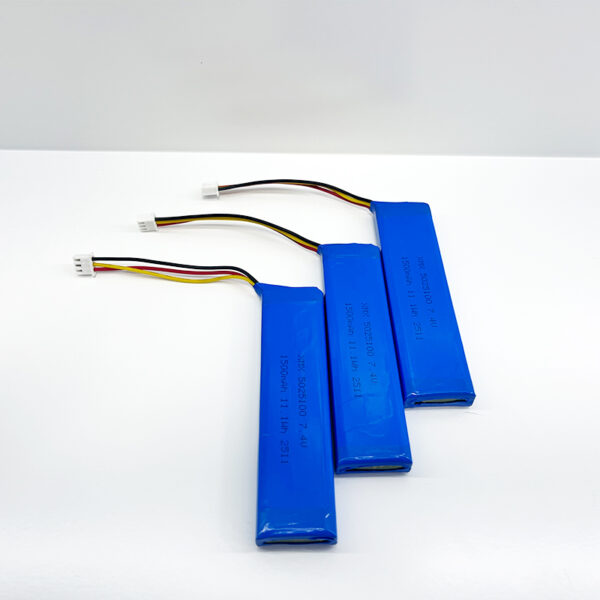

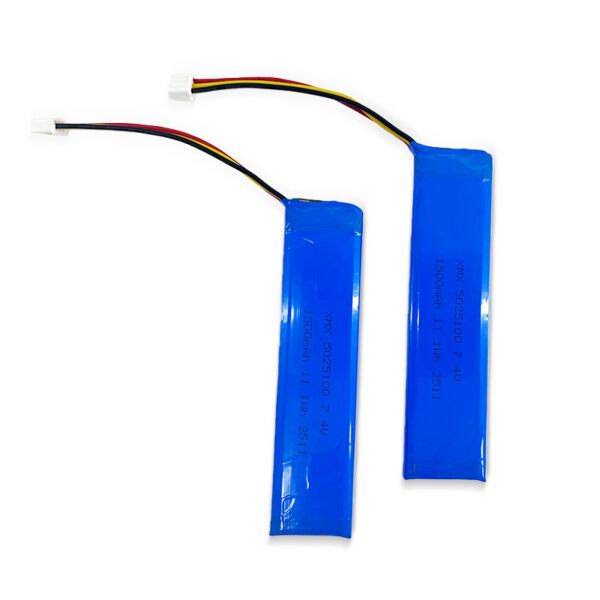

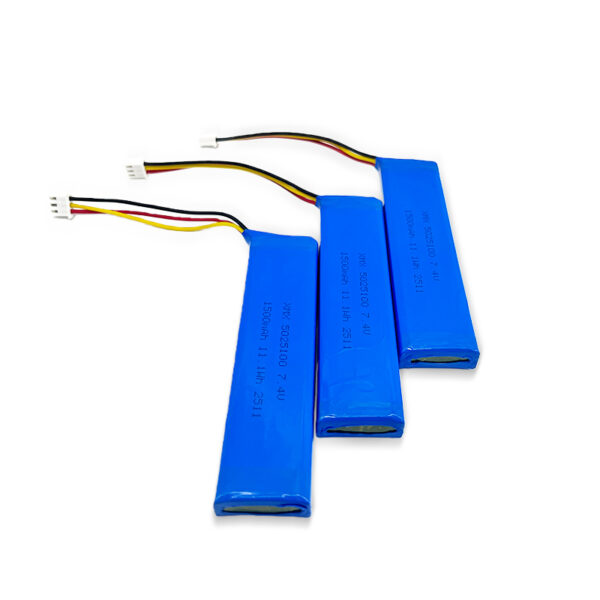

5025100 7.4V 1500mAh LiPo Battery
$4.80
Model 5025100 7.4V 1500mAhlithium polymer battery. High energy density with built-in BMS protection. Ideal for robotics, medical devices and industrial equipment. Custom sizes available. HNF Battery manufacturer.
🔋 5025100 LiPo Battery — 7.4V 1500mAh 2S1P Rechargeable Lithium Polymer Battery Pack
Overview
The 5025100 is a slim 2S1P lithium polymer battery pack delivering stable 7.4V / 1500mAh (11.1Wh) in an ultra-narrow 5.0 × 25 × 100mm form factor. Its distinctive thin-strip profile — just 5mm thick and 25mm wide — makes it uniquely suited for slim-chassis RC vehicles, narrow-body drones, robotic arms, handheld power tools, and any application where a standard flat pack is too wide to fit. Integrated BMS with cell balancing ensures safe, reliable performance across all 2S charging scenarios. Custom wire length and connector available as standard OEM service.
Key Specifications
| Parameter | Specification |
|---|---|
| Model | 5025100 |
| Configuration | 2S1P (2 cells in series) |
| Nominal Voltage | 7.4V |
| Fully Charged Voltage | 8.4V |
| Capacity | 1500mAh |
| Energy | 11.1Wh |
| Dimensions | 5.0 × 25 × 100 mm |
| Weight | ≈ 55g |
| Internal Resistance | ≤ 120mΩ |
| Charge Voltage | 8.4V |
| Recommended Charge | 0.5C = 750mA CC/CV |
| Max Charge Current | 1.5A (1C) |
| Continuous Discharge | 3A (2C) |
| Peak Discharge | 7.5A (5C) |
| Discharge Cut-off | 6.0V (3.0V/cell) |
| Self-discharge Rate | ≤ 3% / month |
| Cycle Life | ≥ 500 cycles |
| Operating Temp | -20°C ~ 60°C |
| Storage Temp | -10°C ~ 45°C |
| Default Wire | 150mm AWG24 |
| Default Connector | JST-XH 3Pin balance + JST-PH 2Pin discharge |
| Certification | CE / UN38.3 / RoHS |
2S1P Configuration Explained
Cell 1 (3.7V / 750mAh) ──┐
├── Series → 7.4V / 1500mAh
Cell 2 (3.7V / 750mAh) ──┘
Total Voltage = 3.7V × 2 = 7.4V
Total Capacity = 1500mAh (single string)
Total Energy = 7.4V × 1.5Ah = 11.1Wh⚠️ Charging requirement: Must use a 2S-compatible balance charger set to 8.4V / 2S LiPo mode. Balance charging via JST-XH 3Pin connector is strongly recommended to maintain equal cell voltage and maximize pack lifespan.
5025100 Unique Form Factor Advantage
| Dimension | 5025100 | Standard 2S Pack |
|---|---|---|
| Thickness | 5.0mm | 8~12mm |
| Width | 25mm | 40~60mm |
| Length | 100mm | 60~80mm |
| Profile type | Ultra-slim strip | Standard flat |
| Ideal housing | Narrow tube / rail slot | Wide flat cavity |
📌 Why this matters: The 5.0 × 25mm cross-section fits into rail-mounted, cylindrical, or narrow-slot enclosures that are completely incompatible with standard flat LiPo packs — opening applications that no standard battery can serve.
7.4V 2S LiPo Series Comparison
| Model | Voltage | Capacity | Dimensions (mm) | Energy | Best For |
|---|---|---|---|---|---|
| 754543 2S | 7.4V | 1800mAh | 7.5×45×43 | 13.3Wh | Robot vacuums, tools |
| 805080 2S | 7.4V | 4500mAh | 10.5×50×80 | 33.3Wh | Industrial, displays |
| 5025100 ⭐ | 7.4V | 1500mAh | 5.0×25×100 | 11.1Wh | Slim RC, narrow robots |
| 6035100 | 7.4V | 2000mAh | 6.0×35×100 | 14.8Wh | Slim drones, RC planes |
| 8050100 | 7.4V | 3000mAh | 8.0×50×100 | 22.2Wh | Mid-size RC vehicles |
Features
- ✅ Ultra-slim 5×25mm cross-section — fits narrow-slot and rail-mounted enclosures
- ✅ Stable 7.4V 2S output — optimized for motor-driven systems and DC converters
- ✅ 5C peak discharge — 7.5A burst for high-torque motor startups
- ✅ Integrated BMS with cell balancing — auto-equalizes both cells during charge
- ✅ Low self-discharge ≤3%/month — reliable for intermittent-use RC & field devices
- ✅ Balance connector included — JST-XH 3Pin for safe 2S balance charging
- ✅ Custom wire & connector standard — length, gauge & plug type customizable at no MOQ premium
- ✅ ≥500 cycle life — long service life for RC, robotics & industrial use
- ✅ CE & UN38.3 certified — EU market ready, global freight compliant
- ✅ In stock — ships within 3 business days
Applications
| Industry | Typical Devices |
|---|---|
| 🚗 RC & Hobby | Slim RC cars, narrow RC boats, RC planes, FPV racers |
| 🚁 Drones & UAV | Compact drones, indoor UAVs, inspection mini-drones |
| 🤖 Robotics | Robotic arms, slim robot chassis, educational robot kits |
| 🔧 Power Tools | Cordless slim tools, electric screwdrivers, RC actuators |
| 🏥 Medical | Narrow-profile portable devices, wearable medical instruments |
| 🏭 Industrial | Rail-mounted field sensors, slim PLC backup, industrial IoT nodes |
| 🎮 Consumer | Handheld game controllers, VR accessories, slim handheld consoles |
| 🔒 Security | Slim wireless cameras, compact access control panels |
BMS & Protection Details
| Protection | Threshold | Function |
|---|---|---|
| ⚡ Overcharge per cell | Cutoff at 4.25V | Prevents thermal runaway |
| 🔋 Over-discharge per cell | Cutoff at 3.0V | Preserves cell capacity |
| ⚖️ Cell balancing | Auto during charge | Equalizes both cells, extends pack life |
| 🔥 Overcurrent | Trips at >7.5A | Protects motor & device circuits |
| ⚠️ Short-circuit | Instant cutoff | Protects user & device in field conditions |
| 🌡️ Over-temperature | Cutoff at >70°C | Thermal protection in enclosed housings |
Connector & Wire Options
| Configuration | Default | Custom Options |
|---|---|---|
| Discharge connector | JST-PH 2Pin | XT30 / XT60 / Deans T / EC3 / bare wire |
| Balance connector | JST-XH 3Pin (2S) | Included standard |
| Wire length | 150mm | 50mm ~ 300mm |
| Wire gauge | AWG24 | AWG18 ~ AWG26 |
| Wire color | Red & black | Custom on request |
📌 Connector and wire customization available at no extra charge for orders ≥50 pcs.
Default Package Configuration
| Item | Specification |
|---|---|
| LiPo pack | 5025100 7.4V 1500mAh 2S1P |
| BMS | ✅ Cell balancing + full protection |
| Discharge wire | 150mm AWG24 |
| Discharge connector | JST-PH 2Pin |
| Balance connector | JST-XH 3Pin |
| Label | Standard / OEM white-label available |
| Stock status | ✅ In stock — ships within 3 business days |
OEM / Custom Options
| Option | Details |
|---|---|
| Voltage | 7.4V (2S) / 11.1V (3S) / 14.8V (4S) / custom |
| Capacity | 500mAh – 5000mAh (this profile) |
| Cell dimensions | Custom strip / flat / square profiles |
| Connector | XT30 / XT60 / Deans / EC3 / JST / bare wire |
| Wire length & gauge | 50mm ~ 300mm / AWG18 ~ AWG26 |
| BMS | Standard / high-rate / smart BMS with UART |
| Housing | Soft pack / hard case / shrink wrap |
| Certification | CE, UN38.3, RoHS, UL, IEC 62133 on request |
| Branding | OEM / white-label labeling & packaging |
| MOQ | 50 pcs（样品订单欢迎） |
Certification & Compliance
| Certificate | Scope | Status |
|---|---|---|
| ✅ CE | EU market compliance | Standard |
| ✅ UN38.3 | Global air & sea freight | Standard |
| ✅ RoHS | Hazardous substance compliance | Standard |
| ✅ MSDS | Material safety data sheet | Standard |
| 📋 UL 2054 | US market battery standard | On request |
| 📋 IEC 62133 | Portable battery safety | On request |
| 📋 KC | Korea market | On request |
✈️ At 11.1Wh, this pack is well within IATA Section II air freight limits — minimal DG shipping restrictions, lowest logistics cost.
Why Choose Us?
- 🏭 Factory Direct — own production lines, zero intermediaries
- 📐 Slim-strip cell specialist — ultra-narrow 5025100 profile is our engineering strength
- 🔌 Free connector customization — any plug, any wire length at no premium for OEM orders
- ⚖️ Cell balancing standard — every 2S pack ships balanced and protected
- 📋 CE + UN38.3 ready — full DG documentation for procurement compliance
- ✈️ Air-freight friendly — 11.1Wh, zero shipping complications
- 🔬 7-day OEM sample — rapid slim-pack prototyping for new product designs
- 🛠️ Full OEM service — from narrow-slot enclosure fit to certified mass production
📩 Have a narrow or rail-mounted enclosure? Send us the cross-section dimensions — we’ll engineer the perfect slim 2S pack within 24 hours.
